Glass Doors Bottom Rolling Systems
PRL’s Bottom Rolling All Glass Door System is designed for residential and commercial interior applications. PRL offers the complete sliding glass rolling door system, ready to install for a clean, frameless glass look. No need to go elsewhere to buy your glass; PRL provides a complete package, your one stop shop.

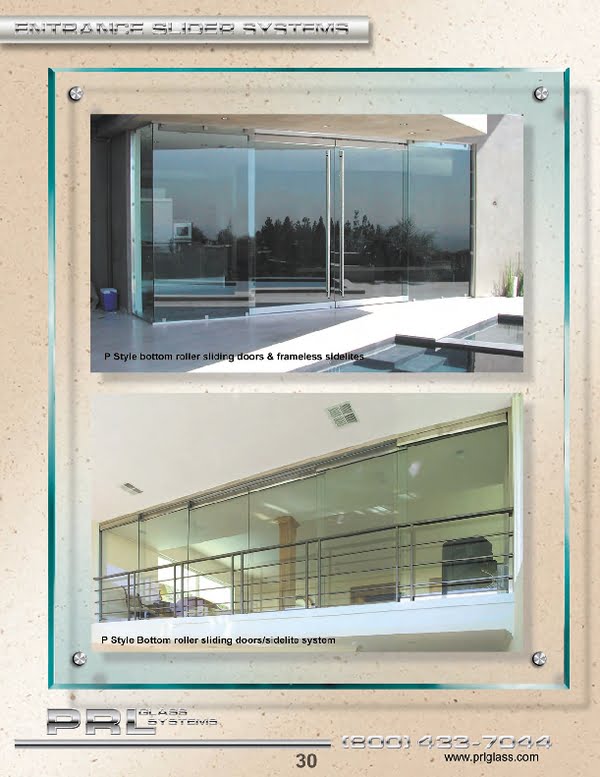

Glass Doors Bottom Rolling
Bottom rolling systems are typically used for interior applications such as interior mall storefronts because they are not weather proof. This versatile sliding application is frequently used to secure an entry when locked closed and act as the back of a storefront display when opened.

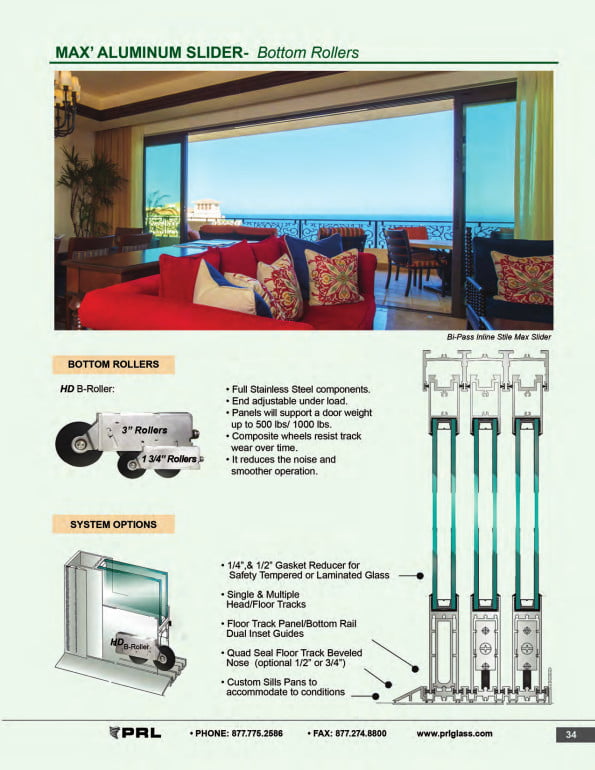

These P-style sliders are composed of wet-set top and bottom rails and include head and sill sliding tracks, heavy duty tandem rollers and straddle locks. P style sidelights also require head and sill track in order to align with the sliding door rails. Our bottom rolling sliding doors can be used with 3/8″, 1/2″ and 3/4″ glass. The following rails can be used with this system: PL150, PL350, PL387, PL600, & PL1000.
Door rails are offered in a variety of finishes: #4 Brushed Stainless Steel, #8 Polished Stainless Steel, Satin and Polished Brass, Bronze and Clear Anodized Aluminum and custom painted finishes. At PRL we extrude and clad our own rails in-house. Continue reading about our bottom rolling slider door systems.
2019 Max Glass and Aluminum Sliding Door Catalog
Complete Aluminum Accordion Bifold Sliding Door Systems

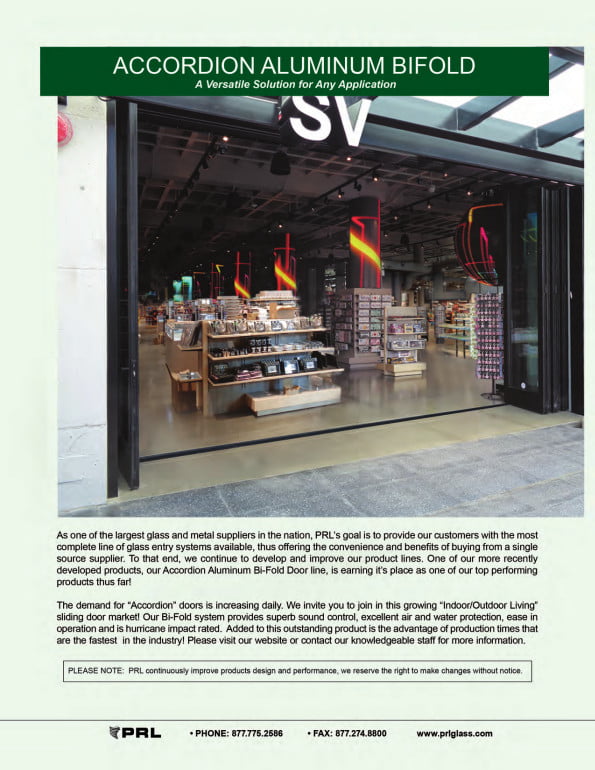

Accordion Aluminum Bifold Doors

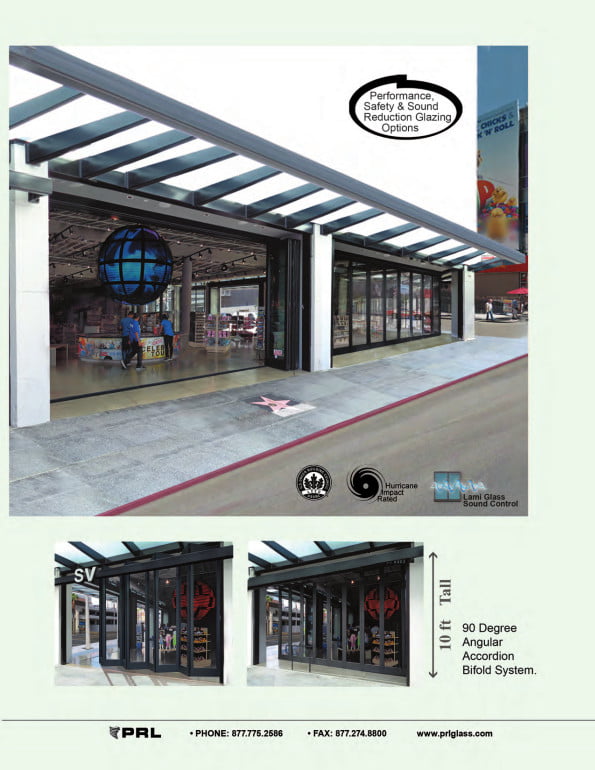

90 Degree Angular Accordion Bifold Door System

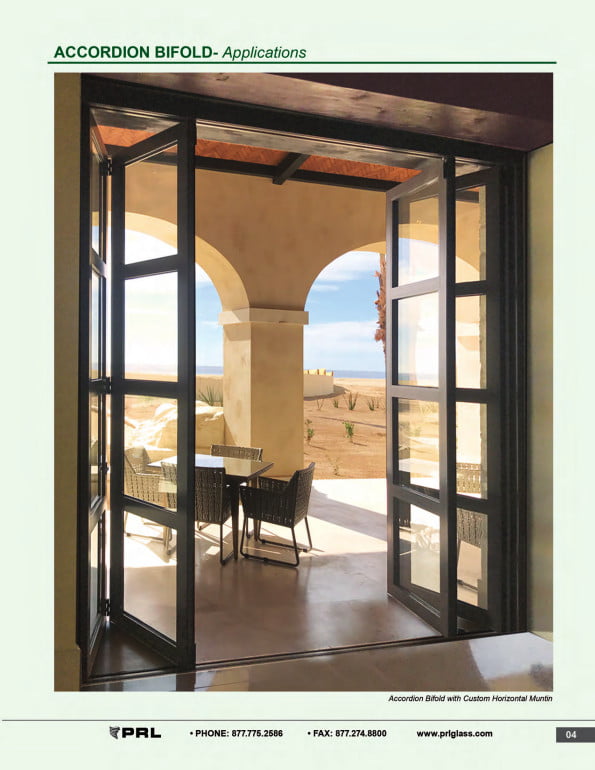

Accordion Bifold Door Applications

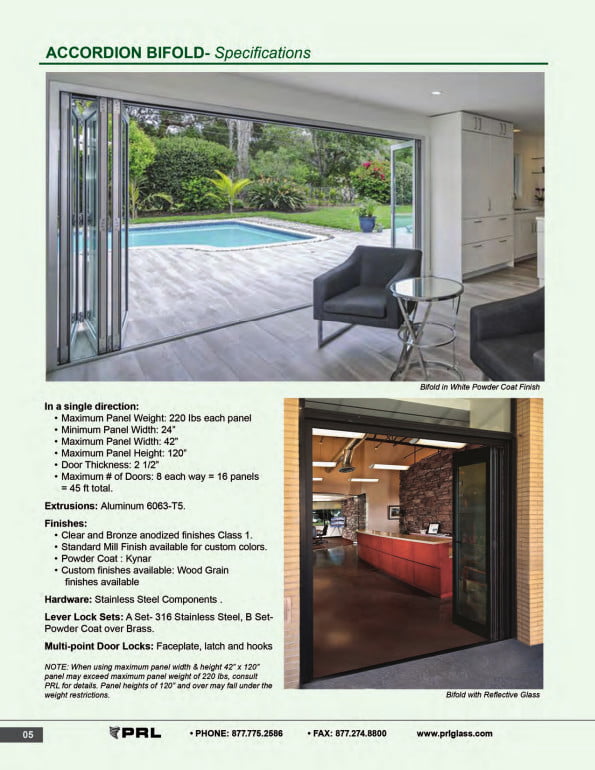

Accordion Bifold Door Specifications

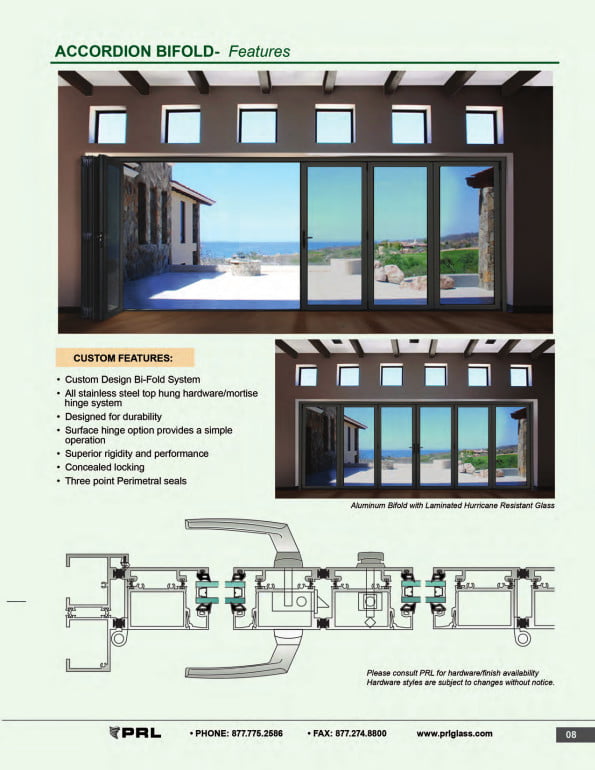

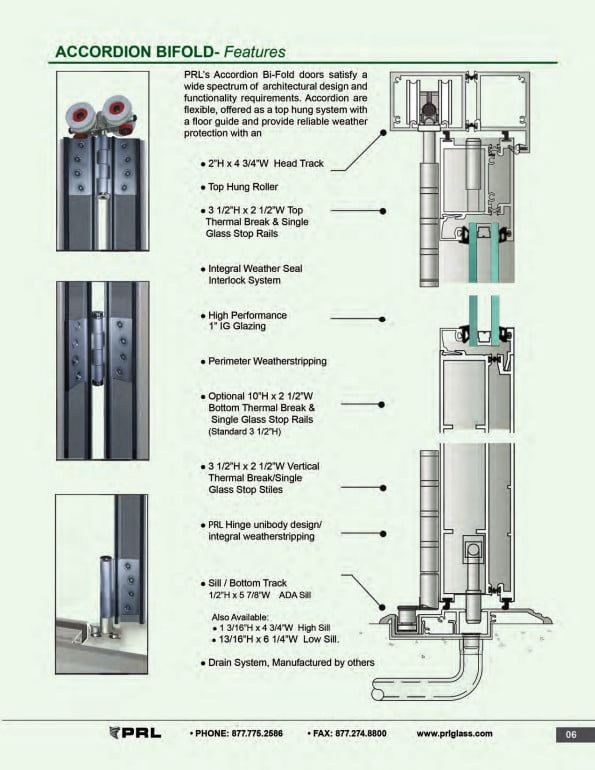

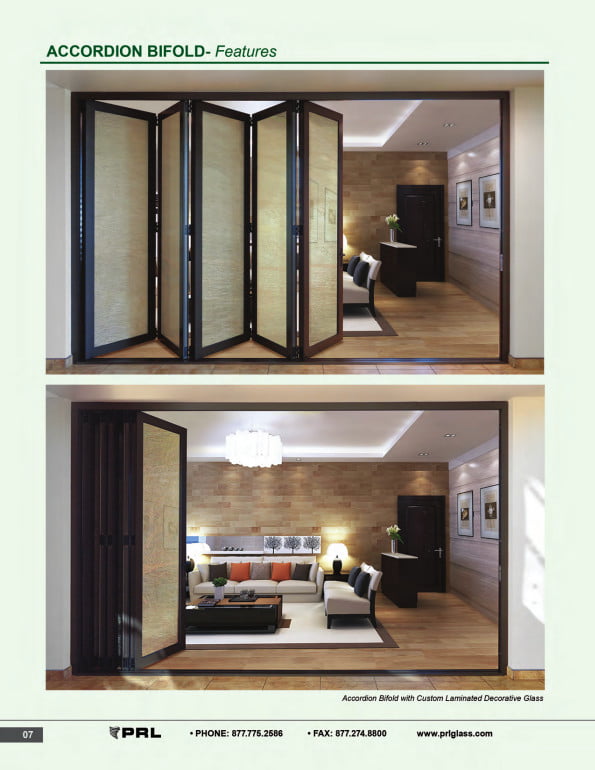

Accordion Bifold Door Features 1
Accordion Bifold Door Features 2
Accordion Bifold Door Features 3

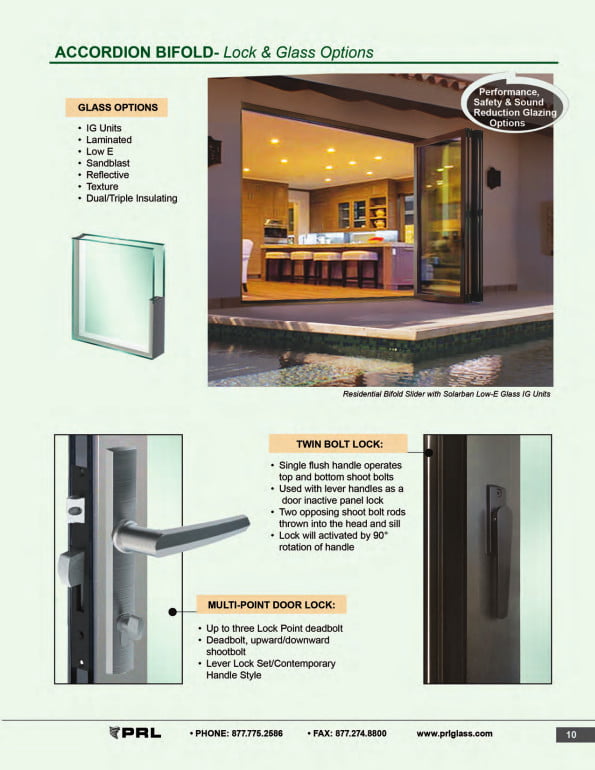

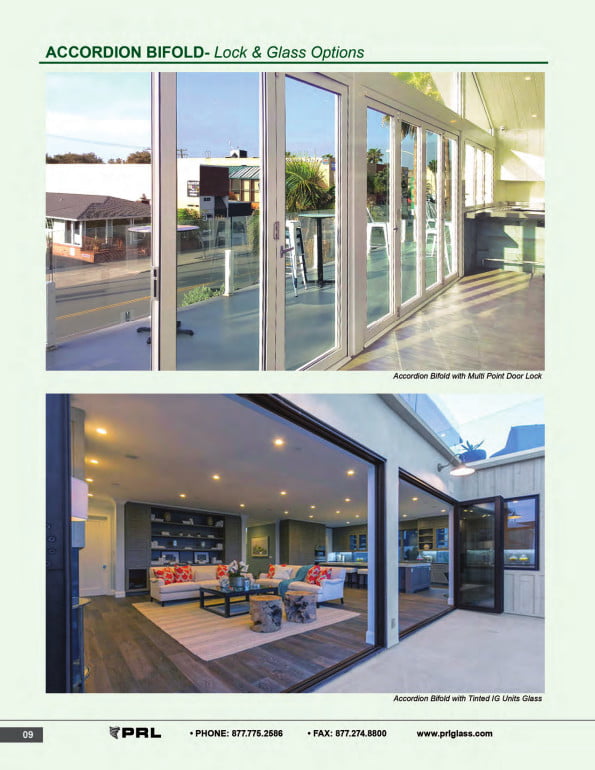

Accordion Bifold Door Lock and Glass Options 1
Accordion Bifold Door Lock and Glass Options 2

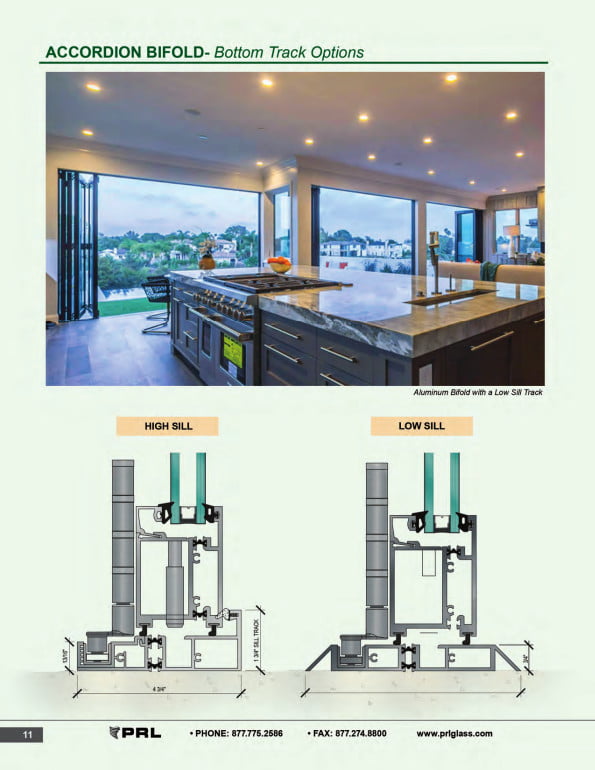

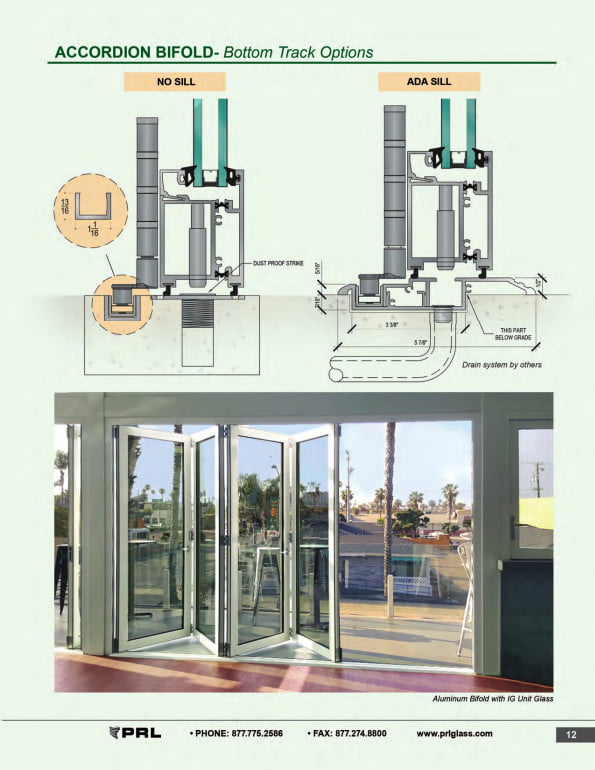

Accordion Bifold Door Bottom Track Options 1
Accordion Bifold Door Bottom Track Options 2

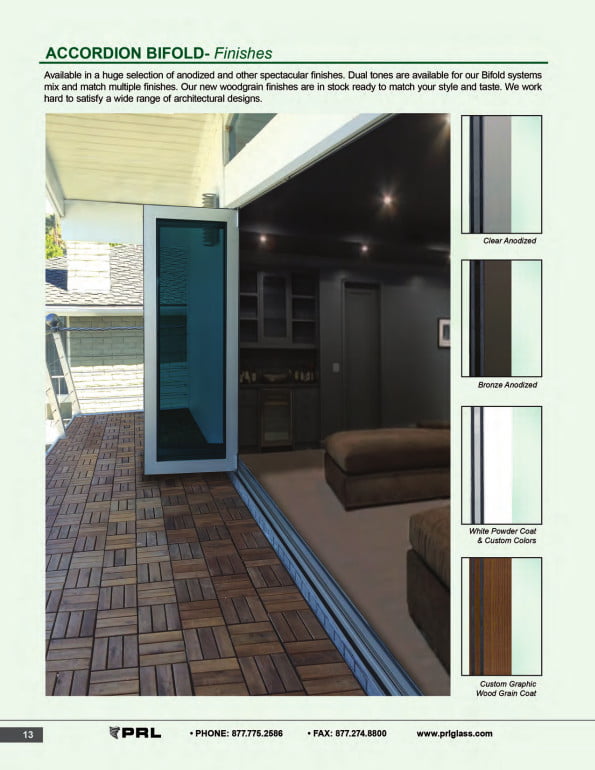

Accordion Bifold Door Finishes

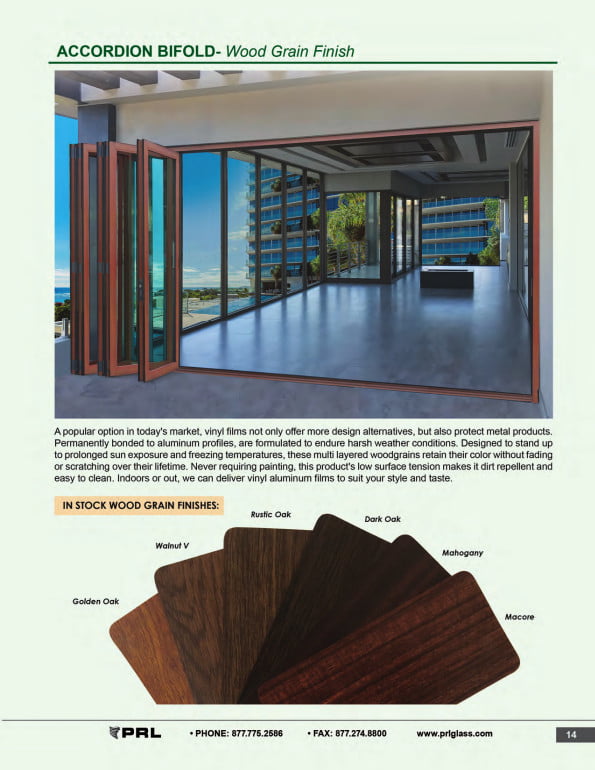

Accordion Bifold Door Wood Grain Finishes

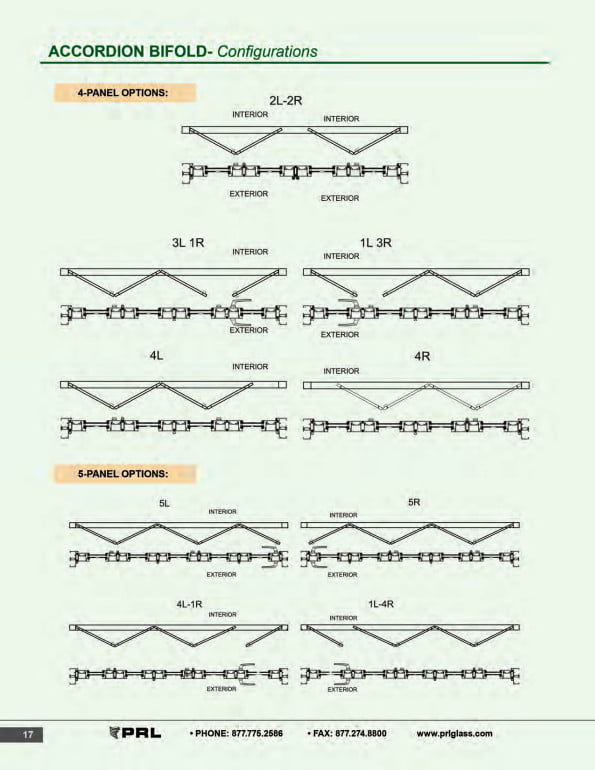

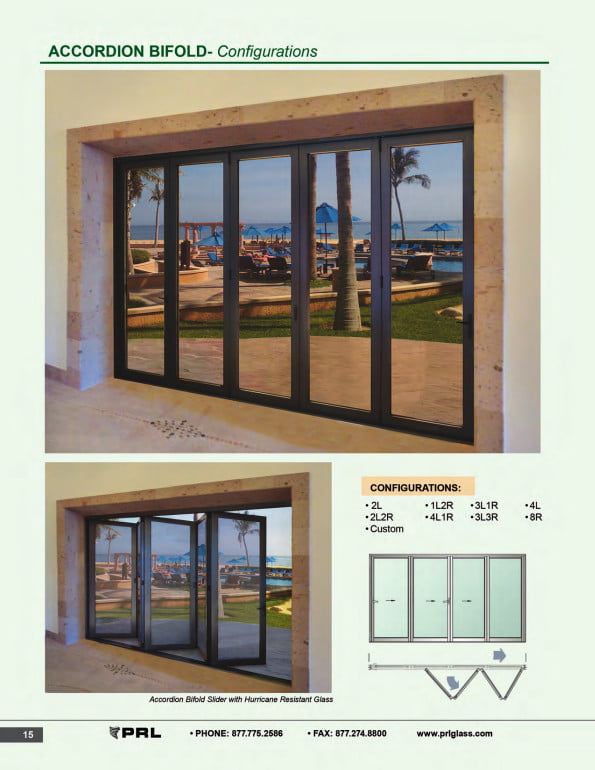

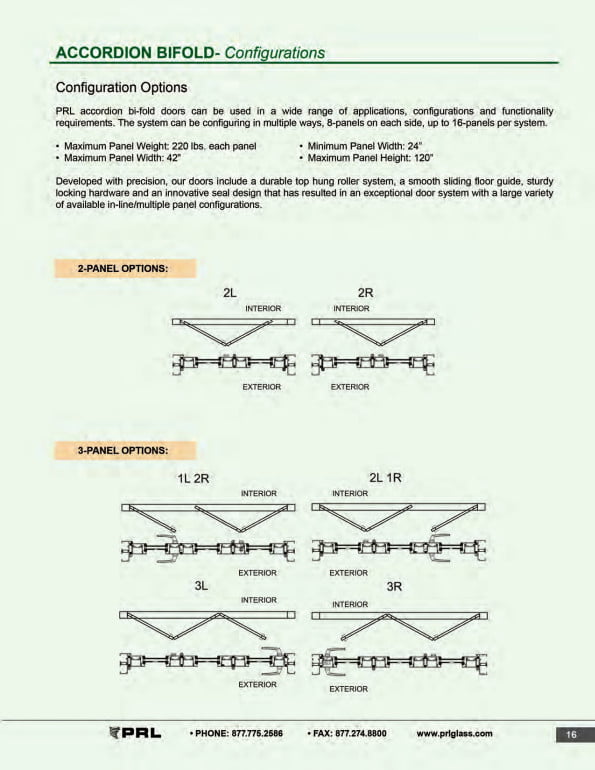

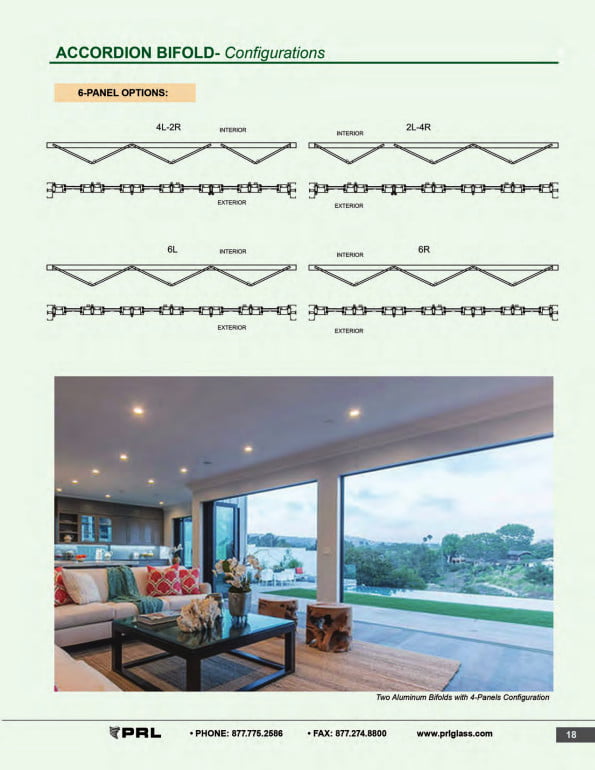

Accordion Bifold Door Configurations 1
Accordion Bifold Door Configurations 2
Accordion Bifold Door Configurations 3
Accordion Bifold Door Configurations 4

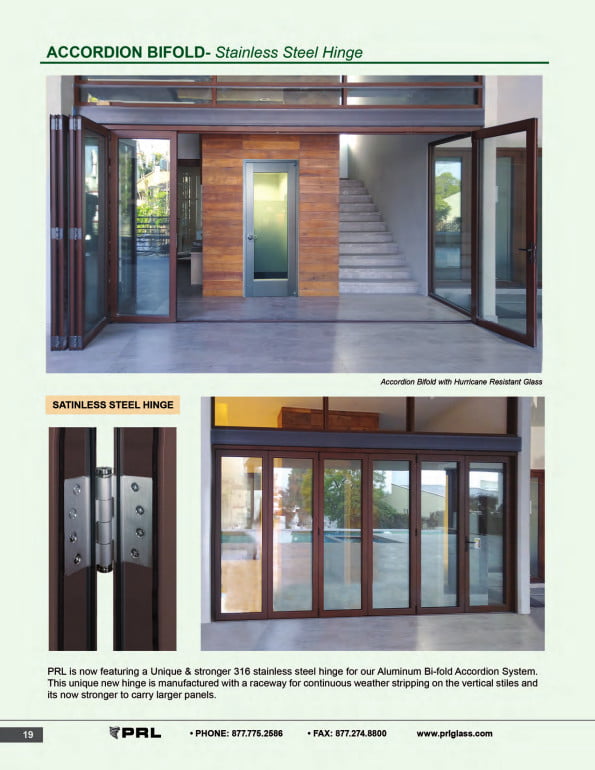

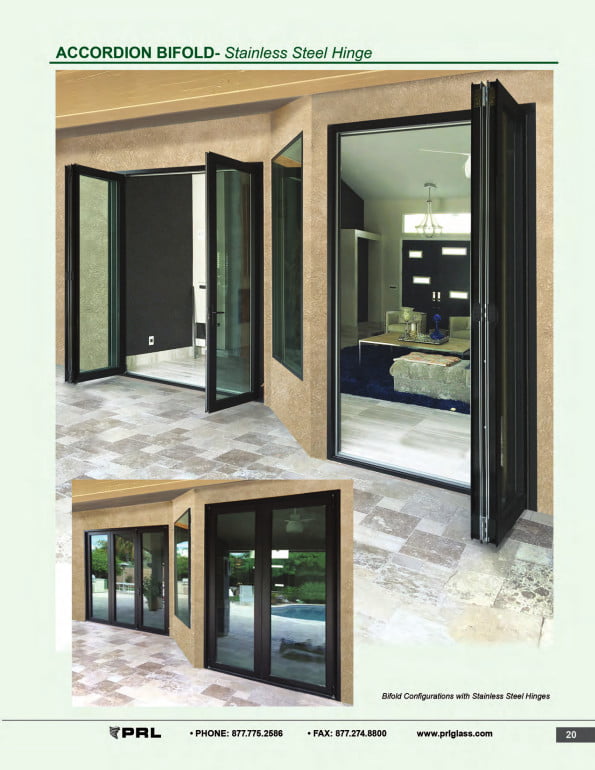

Accordion Bifold Door Stainless Steel Hinge 1
Accordion Bifold Door Stainless Steel Hinge 2

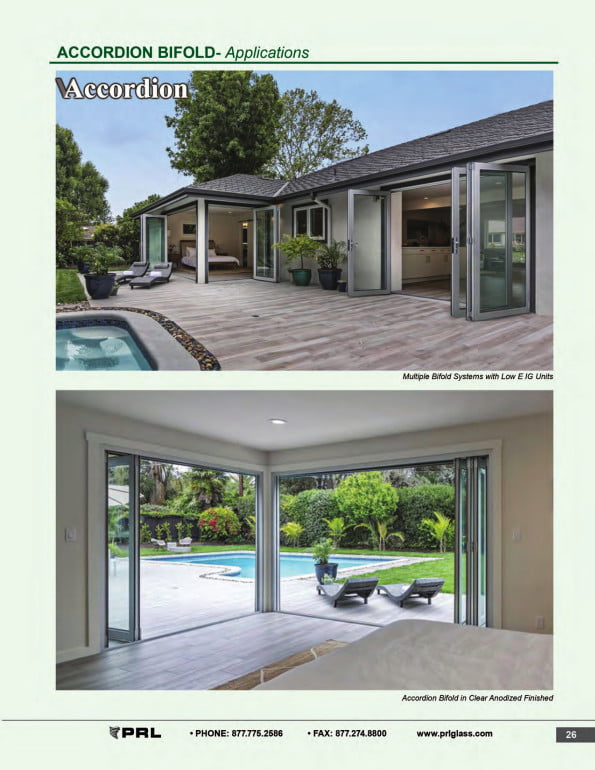

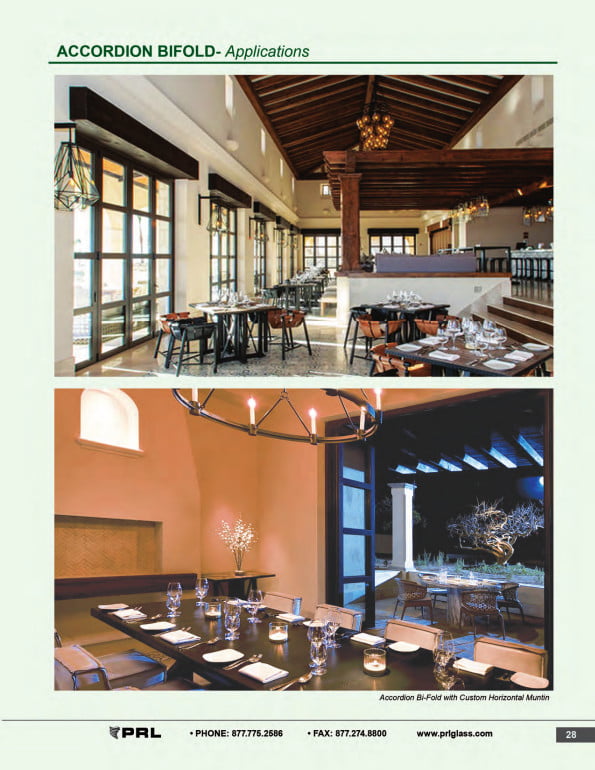

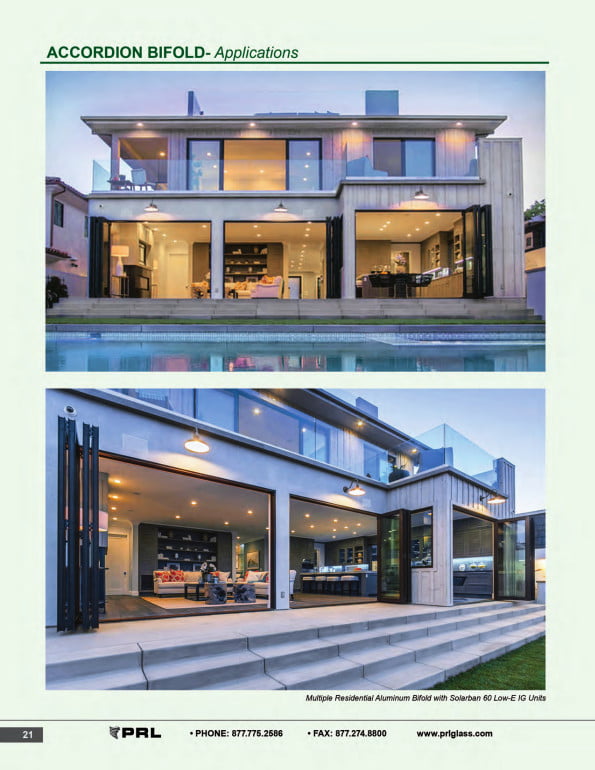

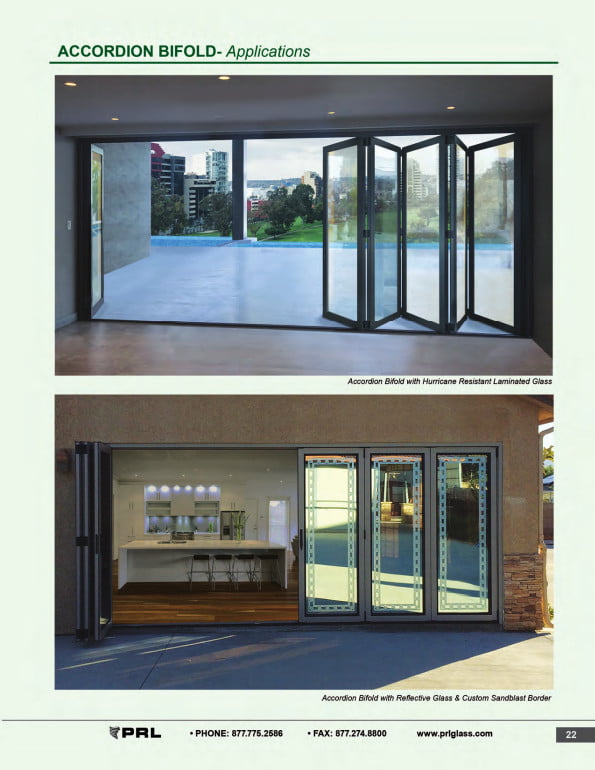

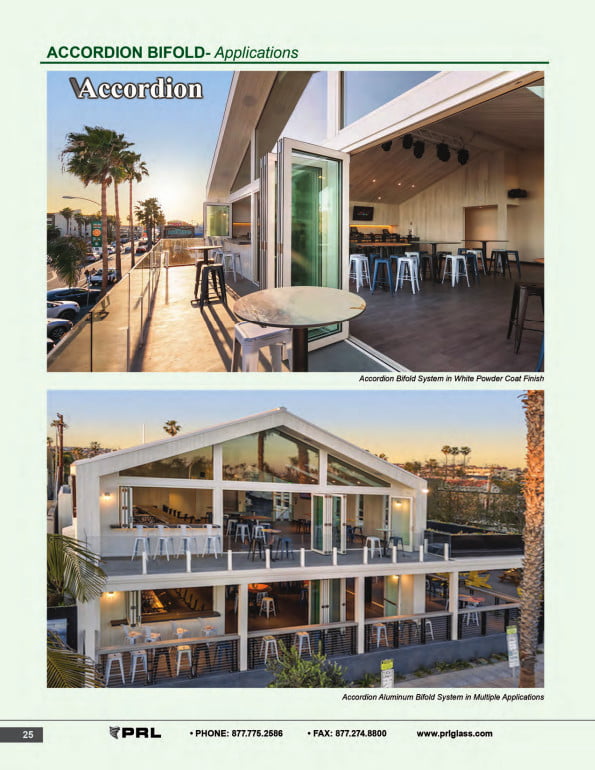

Accordion Bifold Door Applications 1

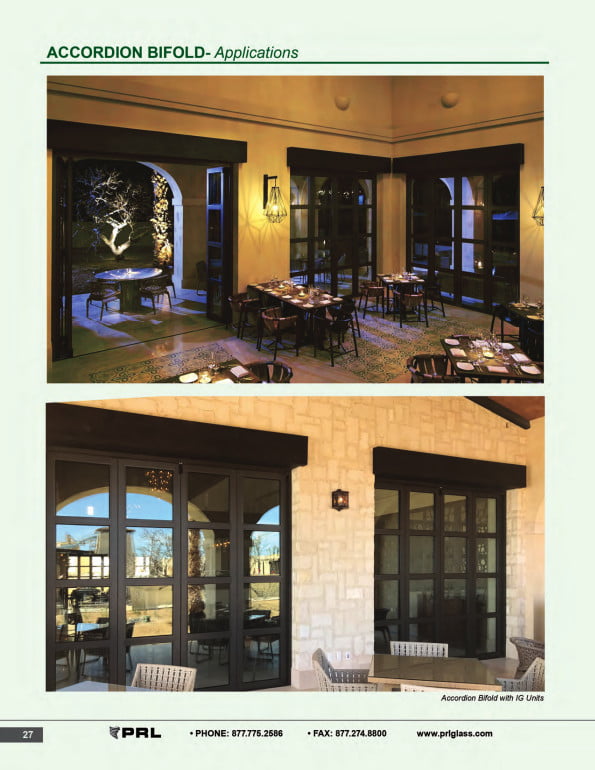

Accordion Bifold Door Applications 2

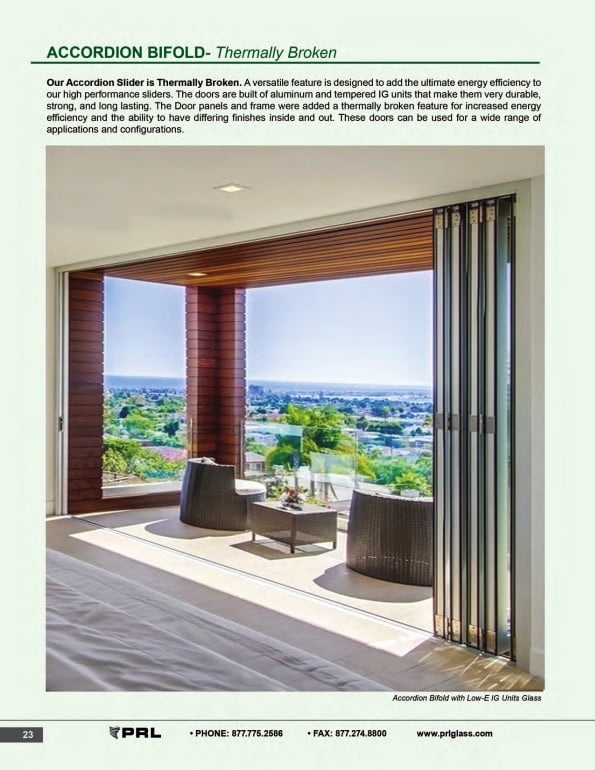

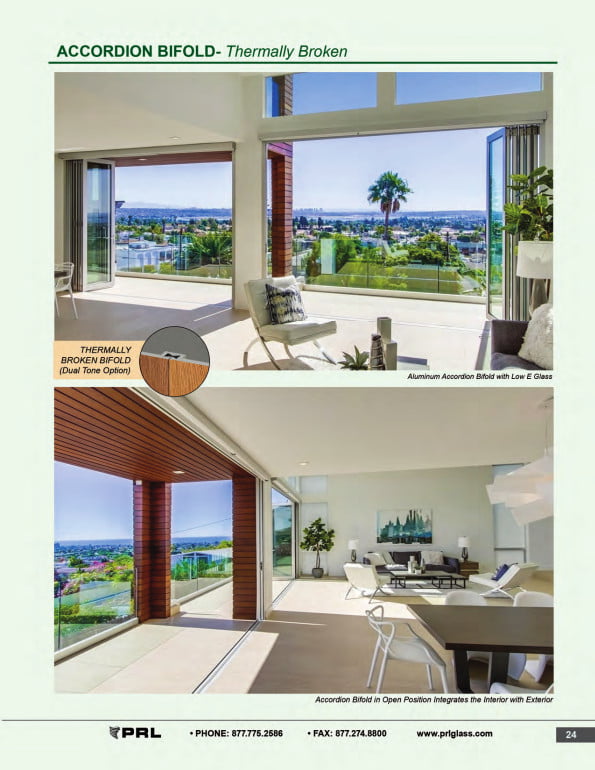

Accordion Bifold Door Thermally Broken 1
Accordion Bifold Door Thermally Broken 2
Accordion Bifold Door Applications 3
Accordion Bifold Door Applications 4
Accordion Bifold Door Applications 5
Accordion Bifold Door Applications 6
Max Glass and Aluminum Sliding Doors

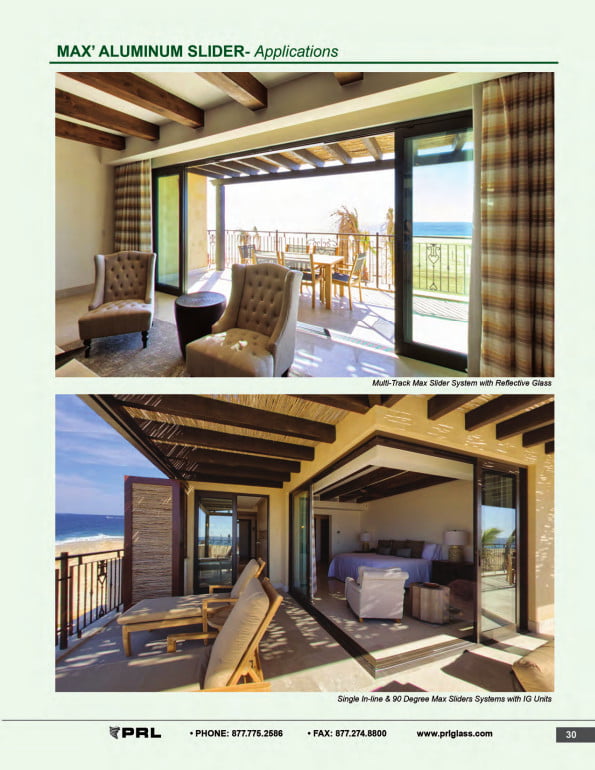

Max Glass and Aluminum Sliding Door Applications 1

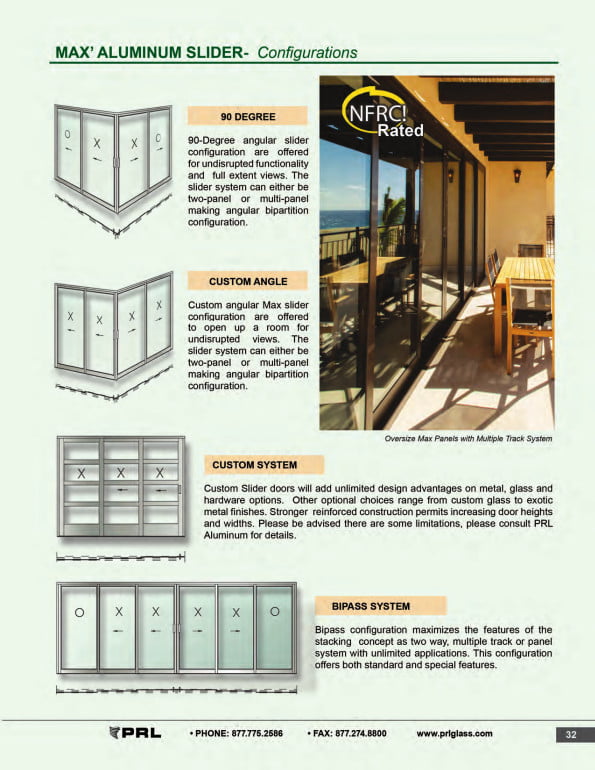

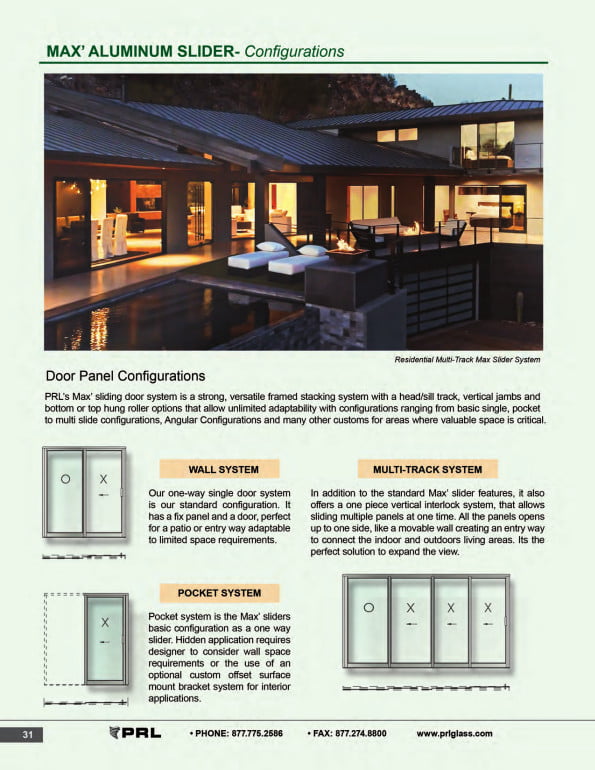

Max Glass and Aluminum Sliding Door Configurations 1
Max Glass and Aluminum Sliding Door Configurations 2

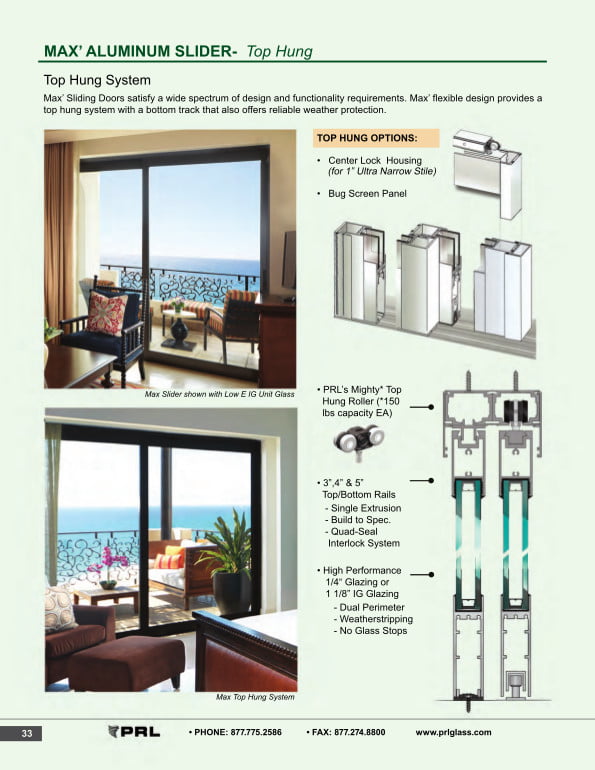

Top Hung Glass and Aluminum Sliding Door
Bottom Rolling Glass and Aluminum Sliding Door

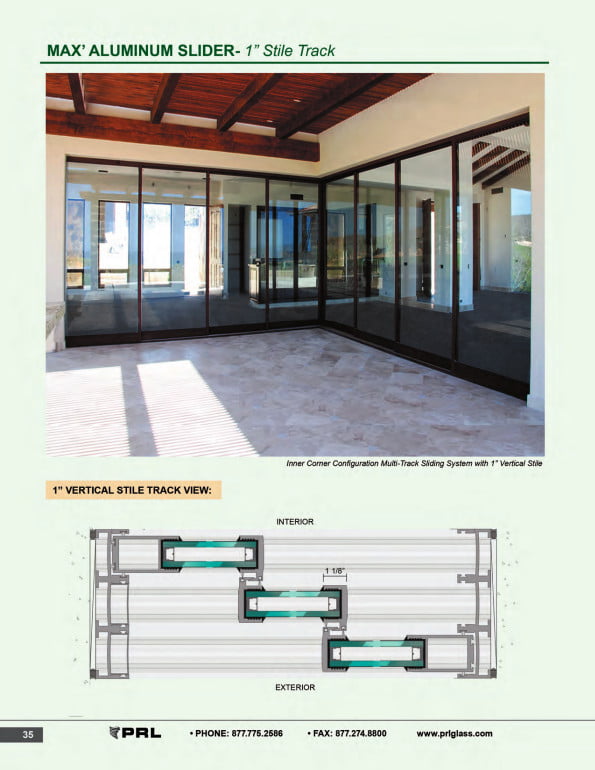

1 Inch Stile Track Glass and Aluminum Sliding Door

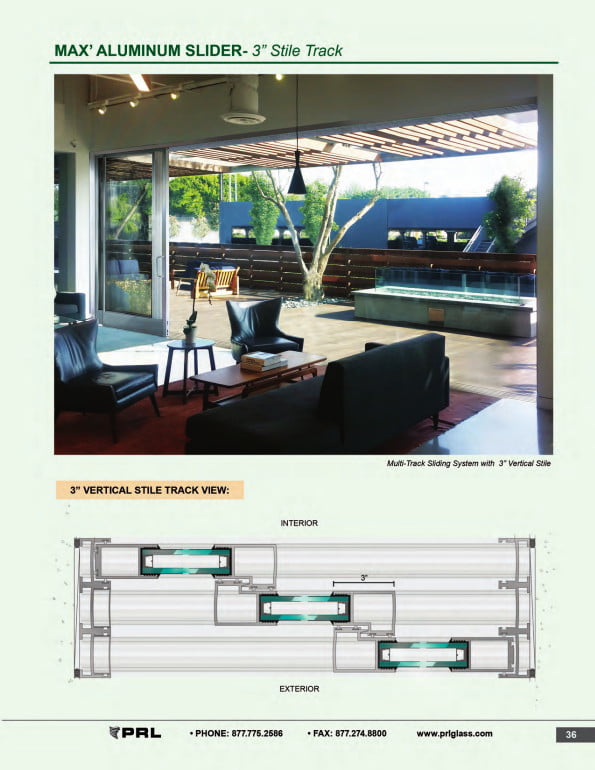

3 Inch Stile Track Glass and Aluminum Sliding Door

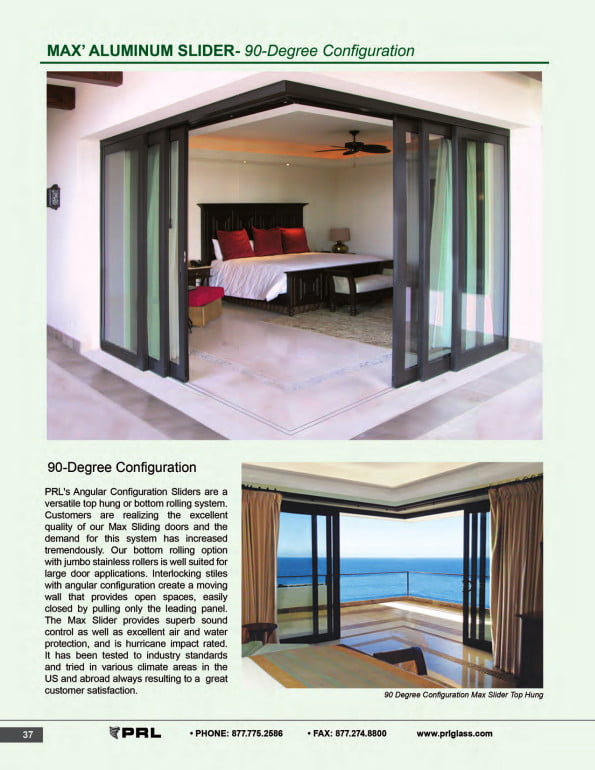

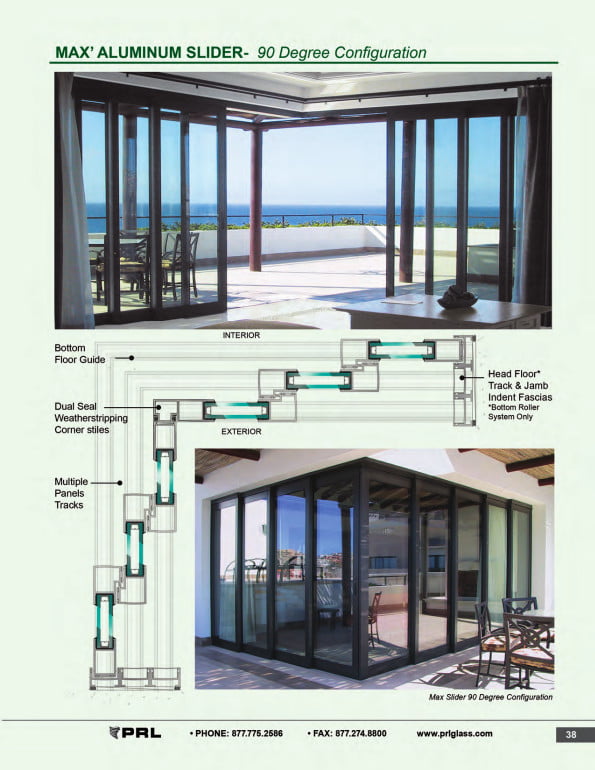

90 Degree Glass and Aluminum Sliding Door Configuration 1
90 Degree Glass and Aluminum Sliding Door Configuration 2

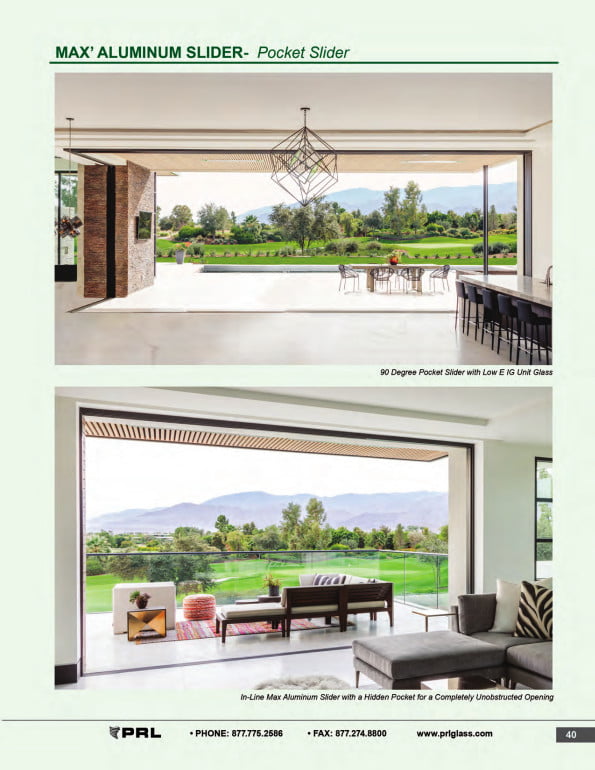

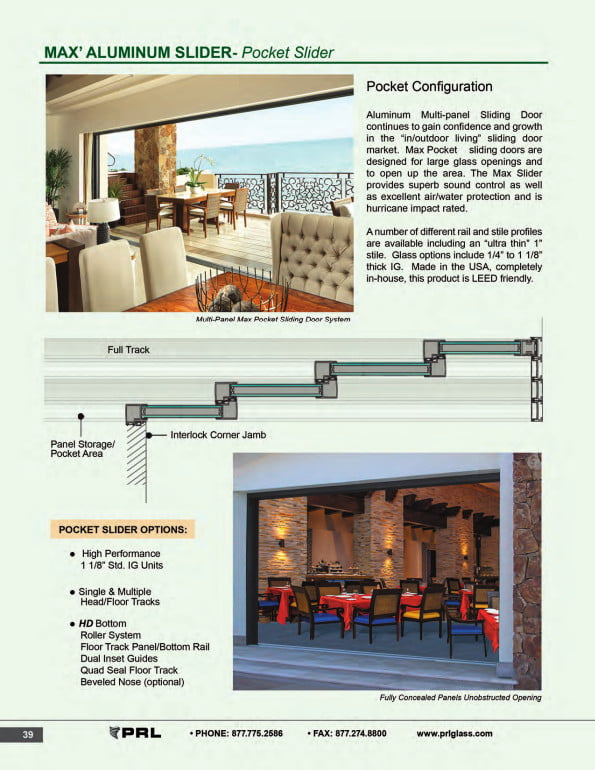

Pocket Glass and Aluminum Sliding Door 1
Pocket Glass and Aluminum Sliding Door 2

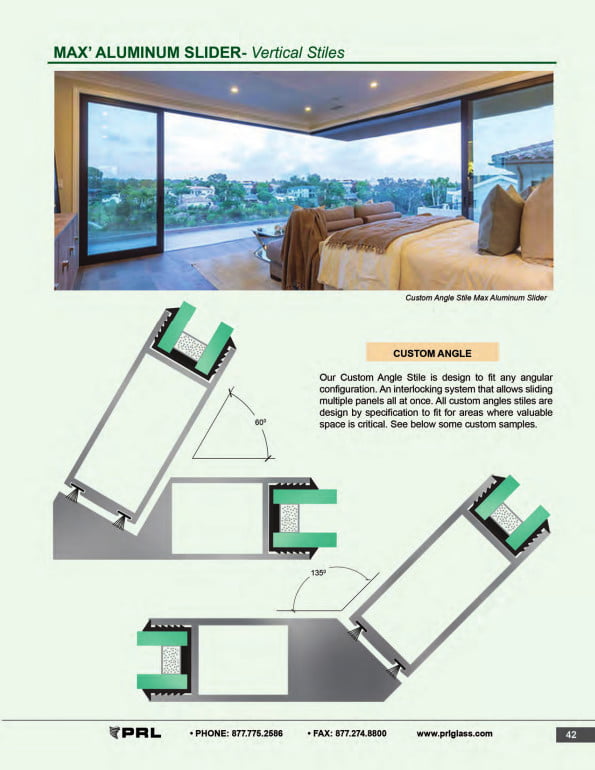

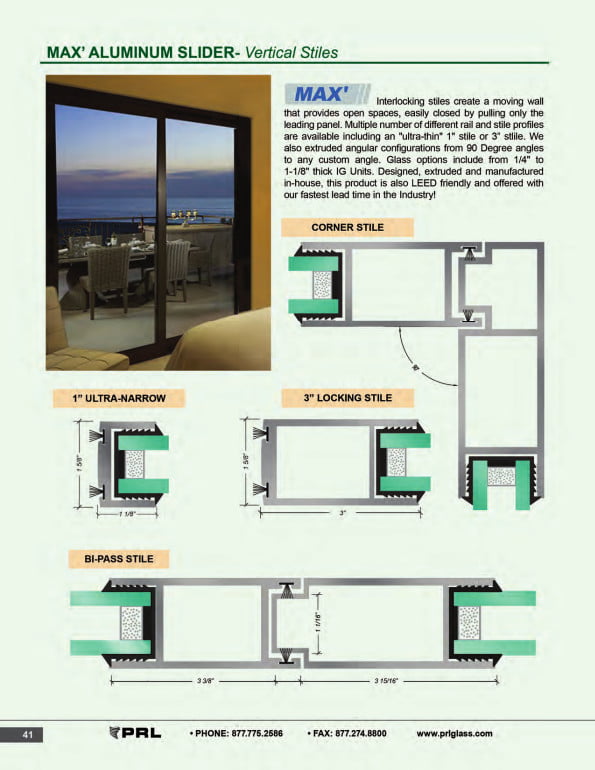

Vertical Stile Glass and Aluminum Sliding Door 1
Vertical Stile Glass and Aluminum Sliding Door 2

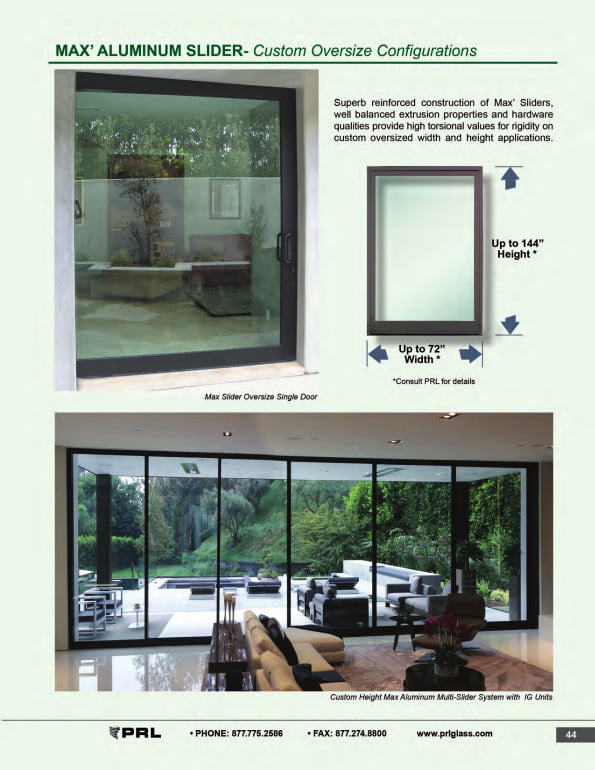

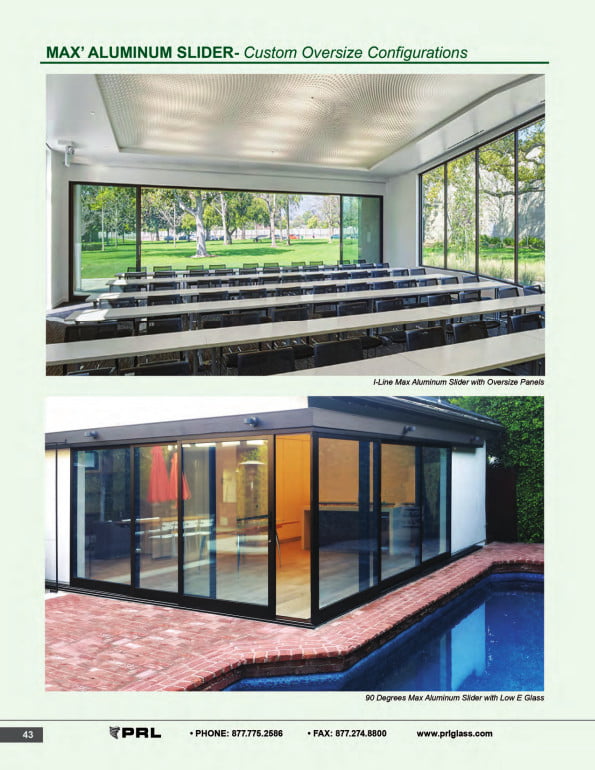

Custom Oversized Glass and Aluminum Sliding Door 1
Custom Oversized Glass and Aluminum Sliding Door 2

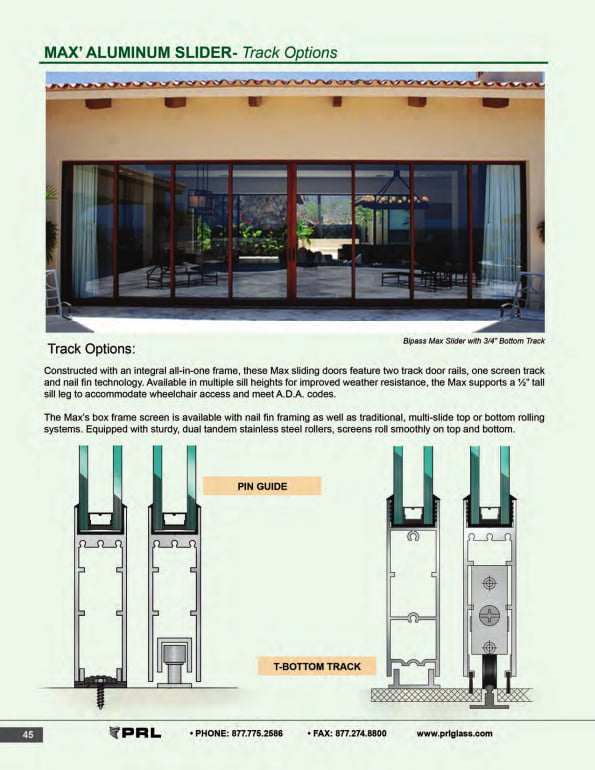

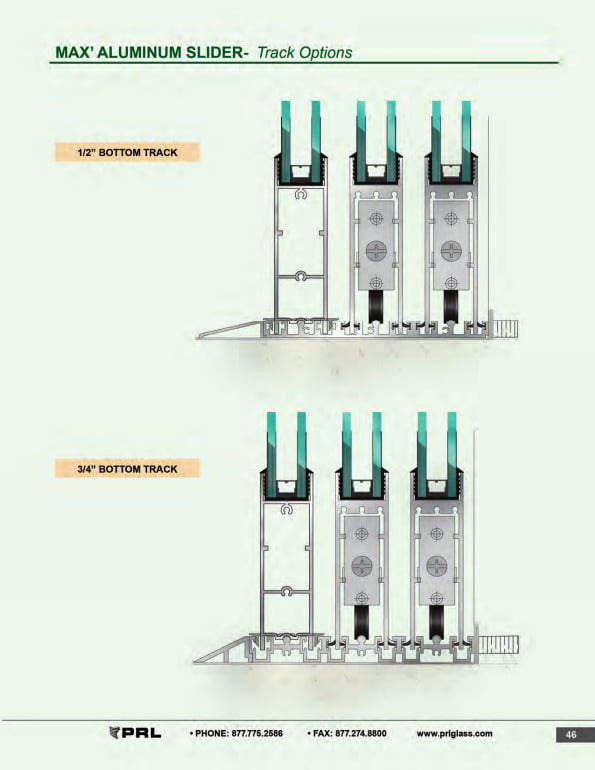

Glass and Aluminum Sliding Door Track Options 1
Glass and Aluminum Sliding Door Track Options 2

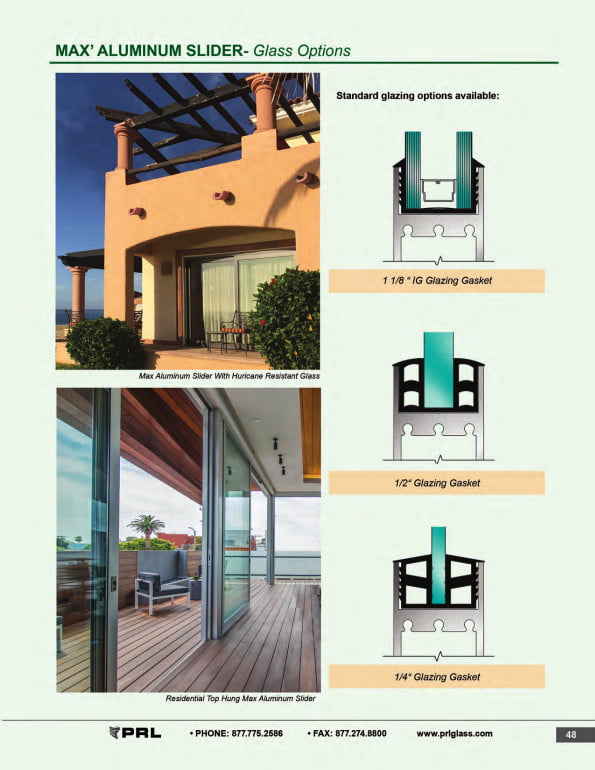

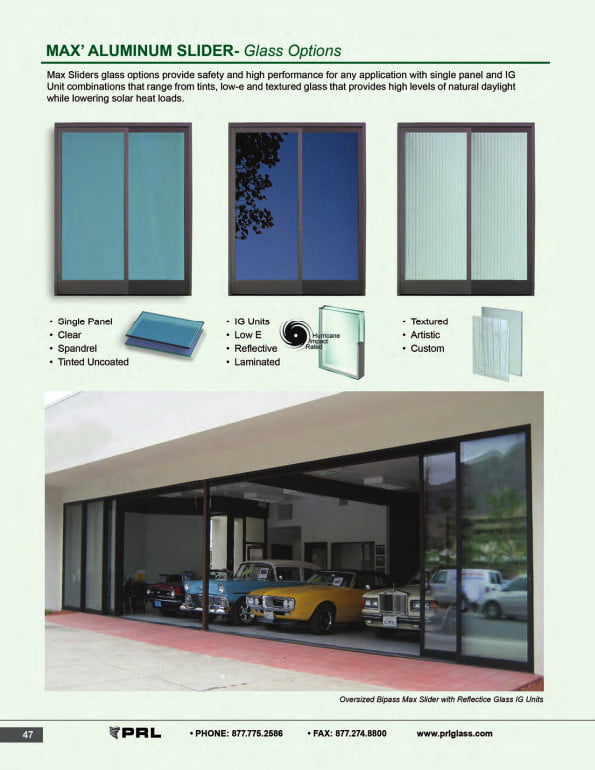

Glass and Aluminum Sliding Door Glass Options 1
Glass and Aluminum Sliding Door Glass Options 2

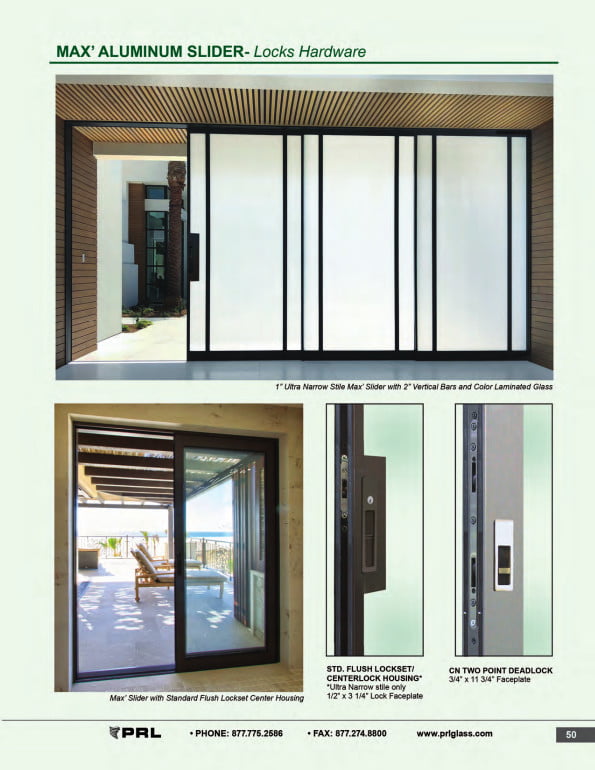

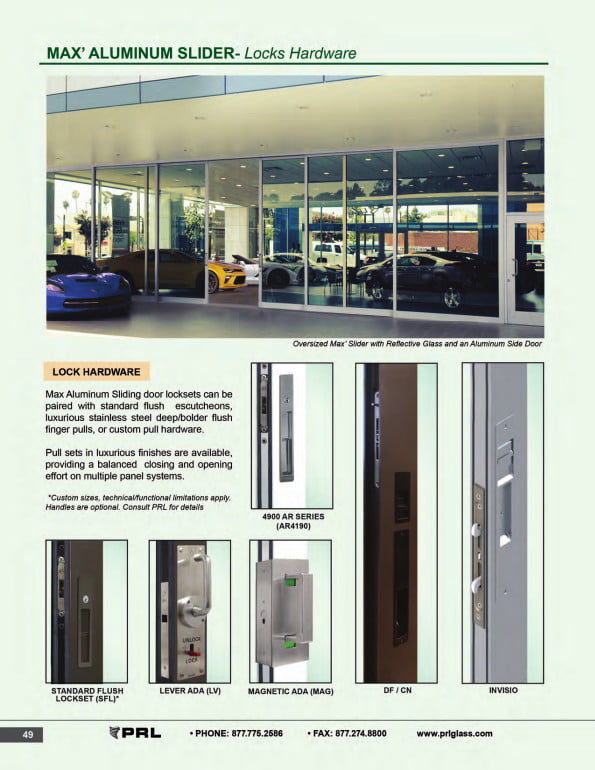

Glass and Aluminum Sliding Door Locks and Hardware 1
Glass and Aluminum Sliding Door Locks and Hardware 2

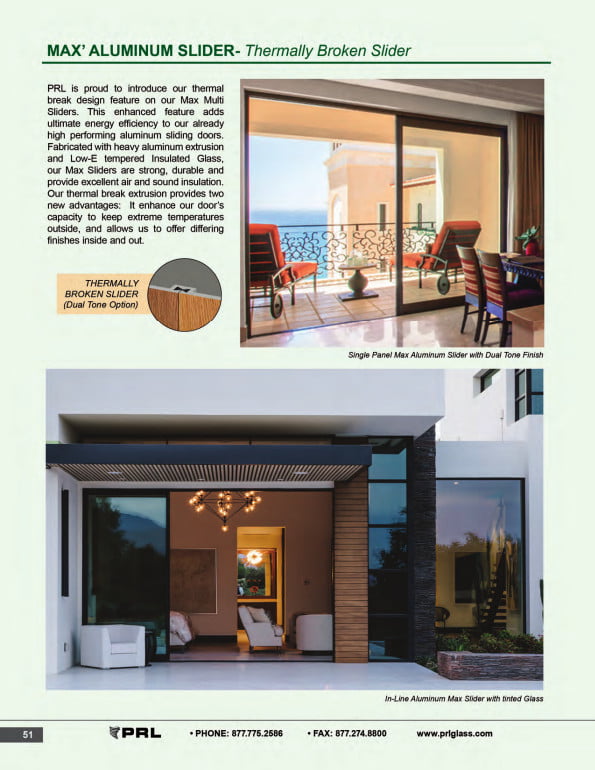

Thermally Broken Sliding Door

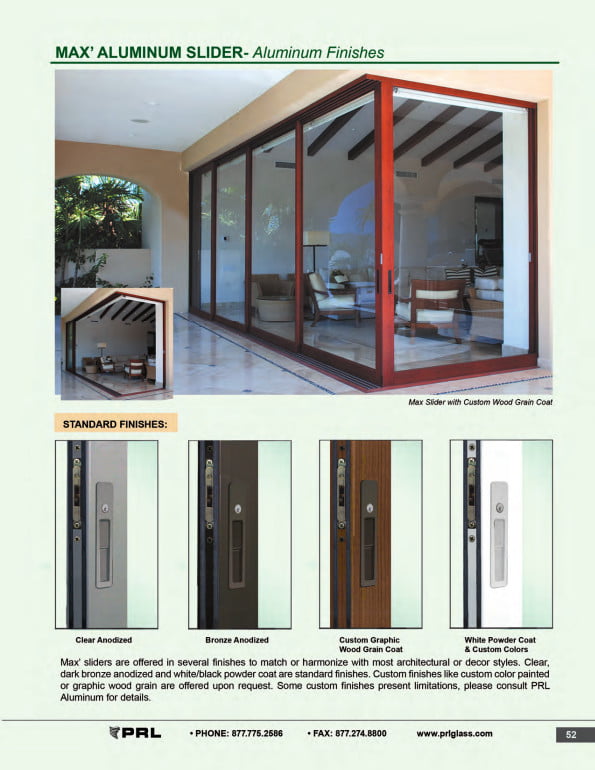

Aluminum Sliding Door Finishes

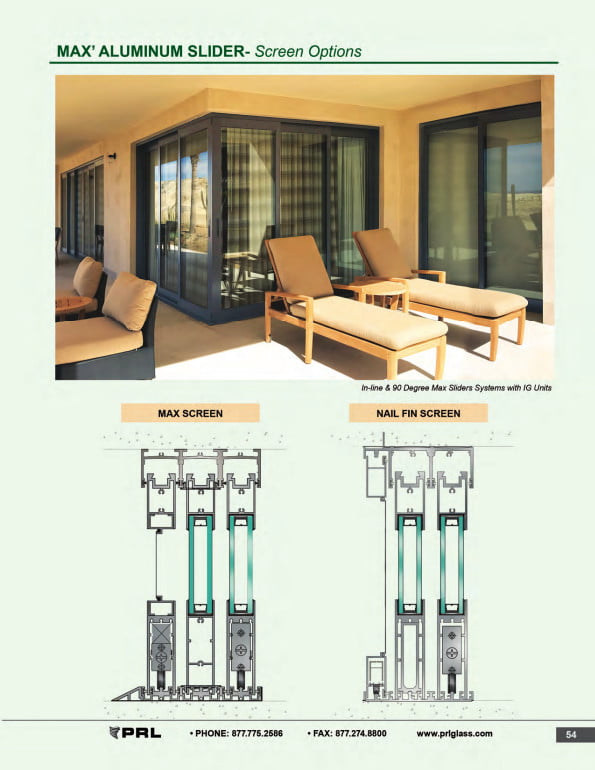

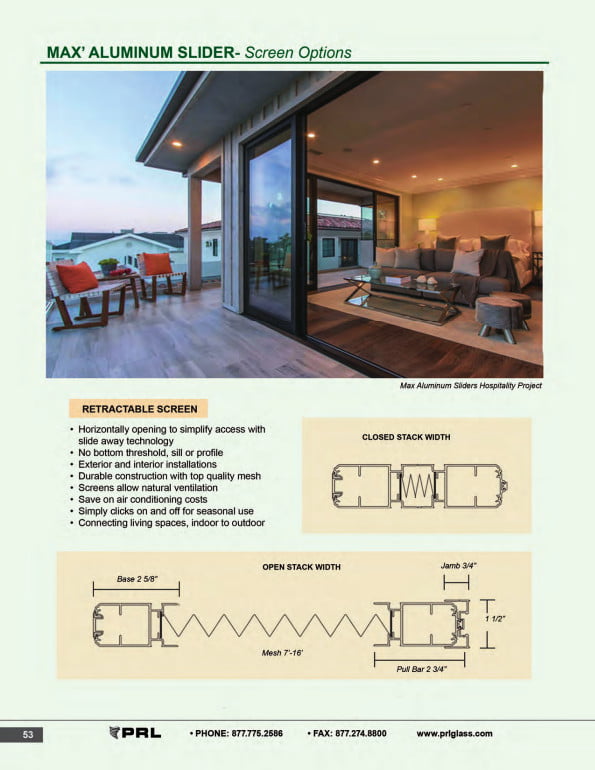

Glass and Aluminum Sliding Door Screen Options 1
Glass and Aluminum Sliding Door Screen Options 2

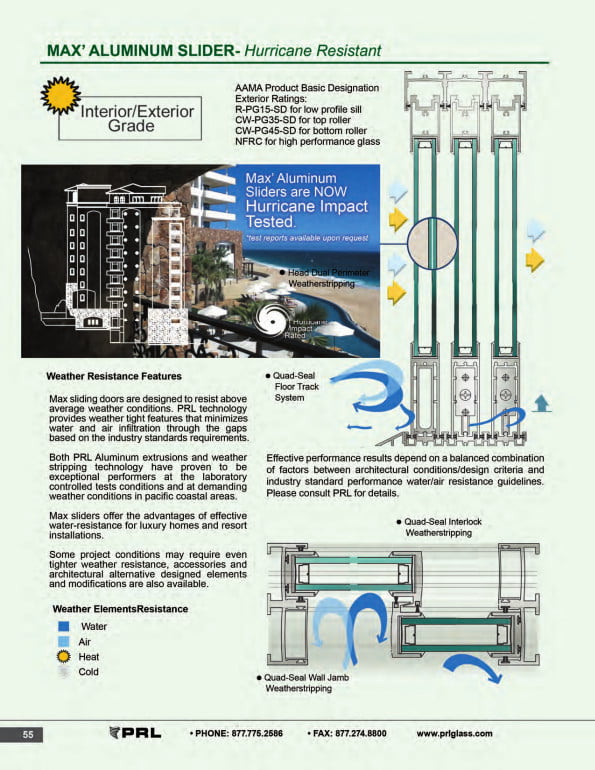

Hurricane Resistant Glass and Aluminum Sliding Doors 1

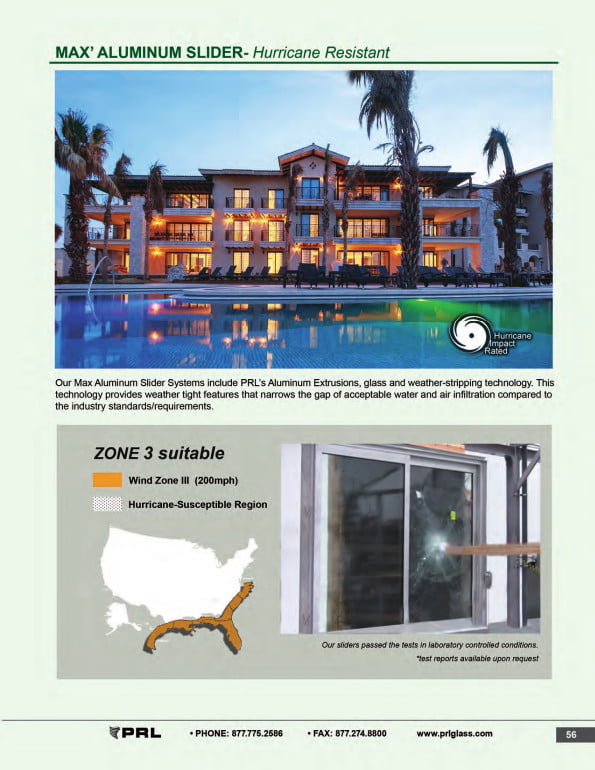

Hurricane Resistant Glass and Aluminum Sliding Doors 2

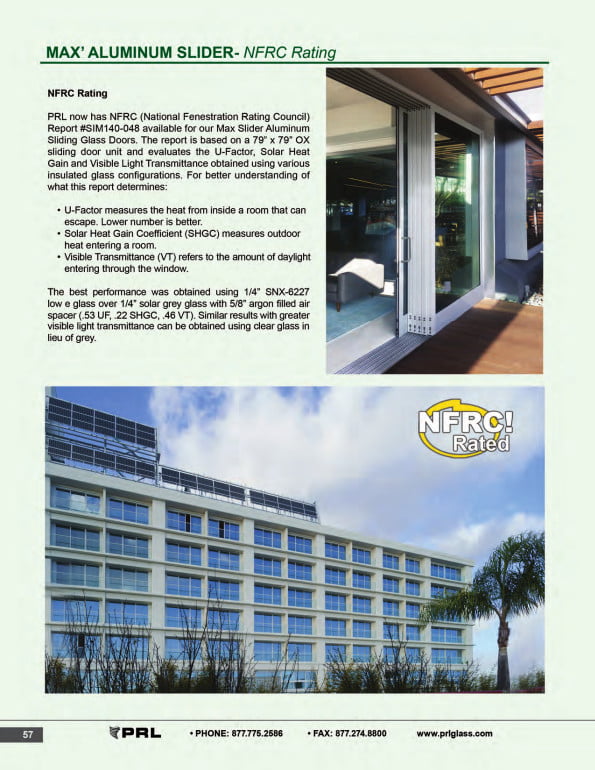

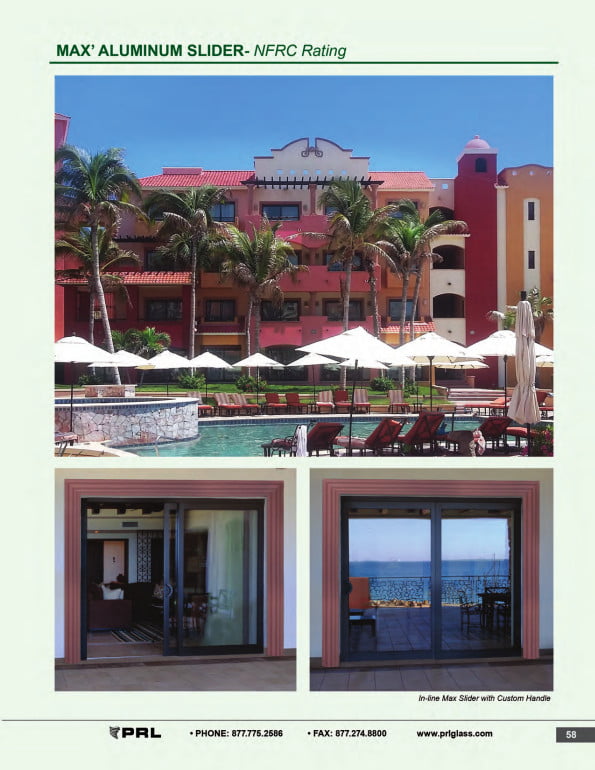

NFRC Rating Glass and Aluminum Sliding Doors 1
NFRC Rating Glass and Aluminum Sliding Doors 2

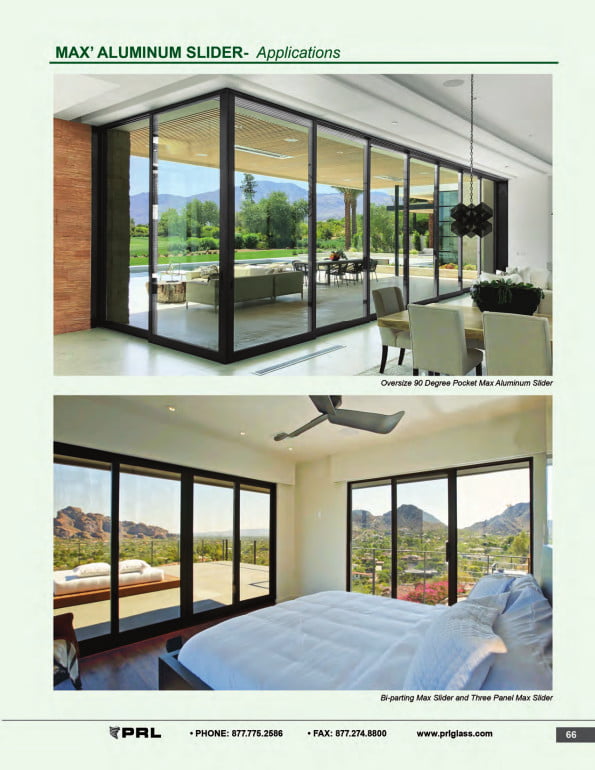

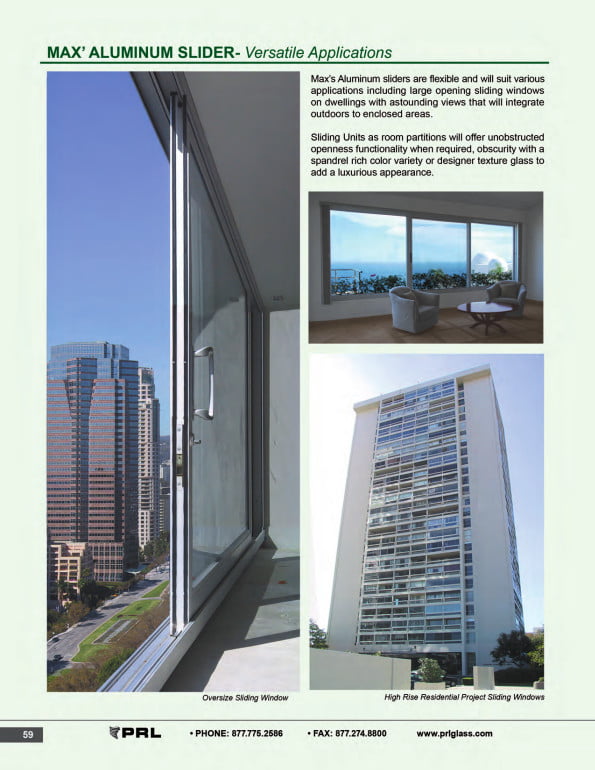

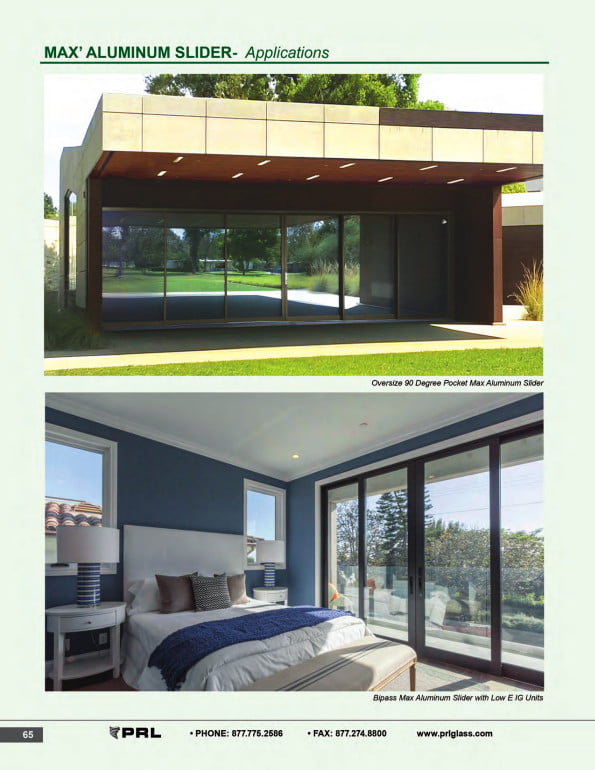

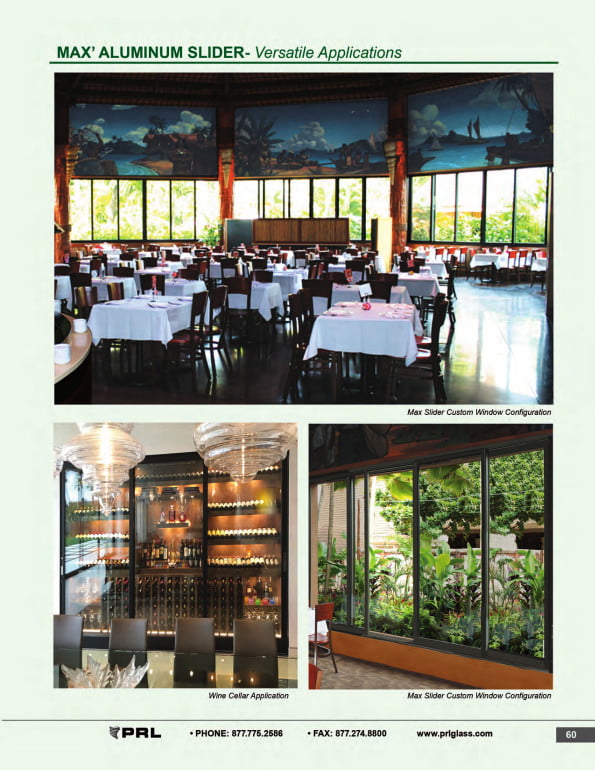

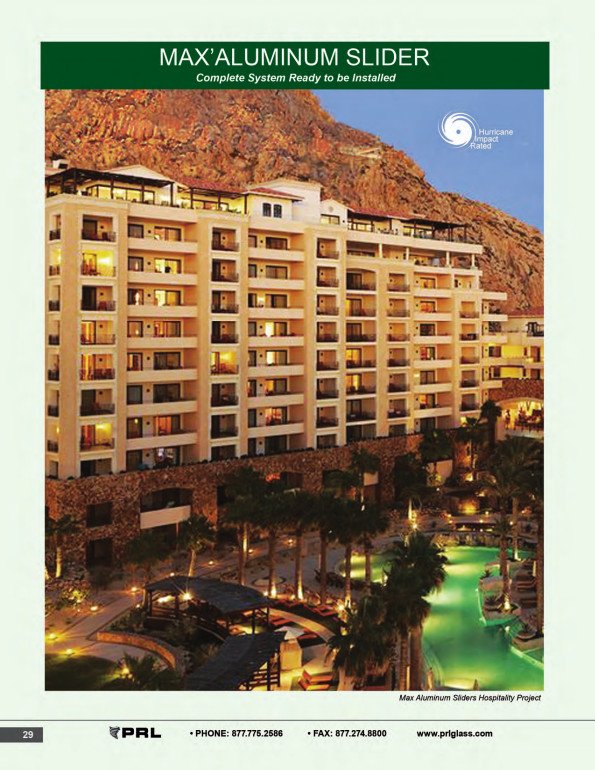

Max Aluminum Sliding Doors Versatile Applications 1
Max Aluminum Sliding Doors Versatile Applications 2

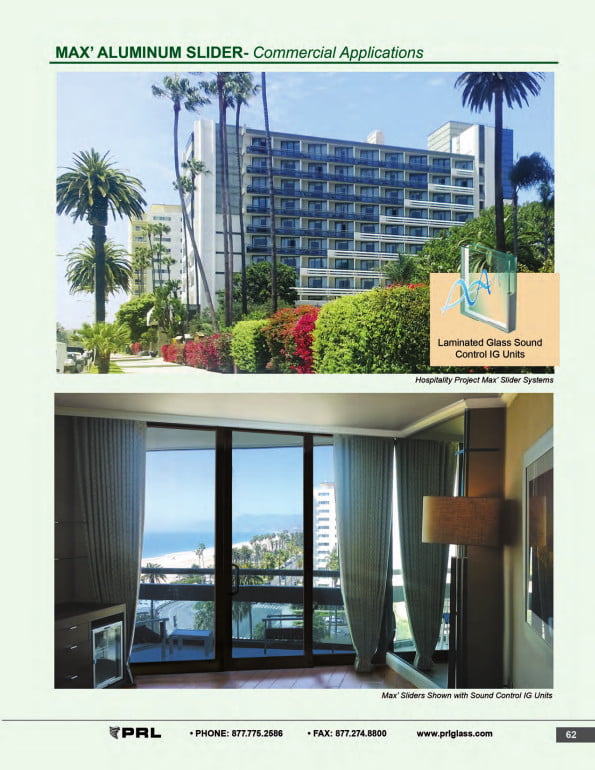

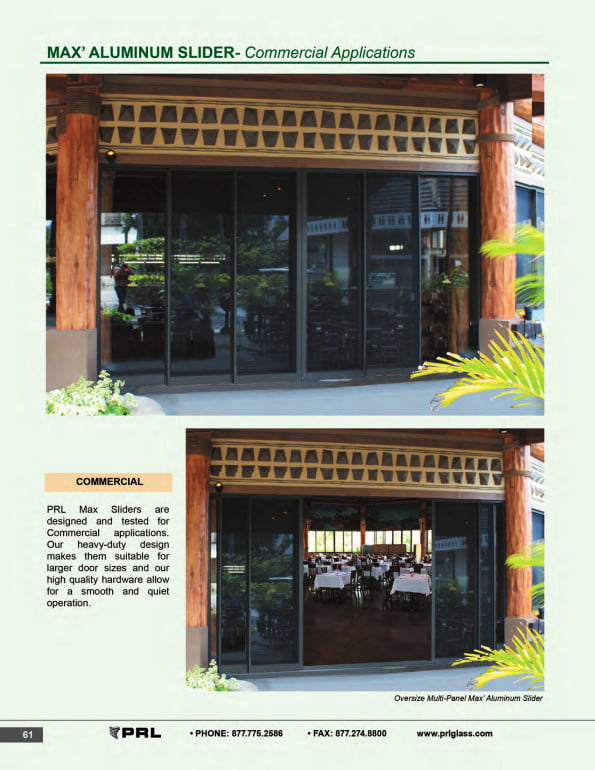

Commercial Application Sliding Doors 1
Commercial Application Sliding Doors 2

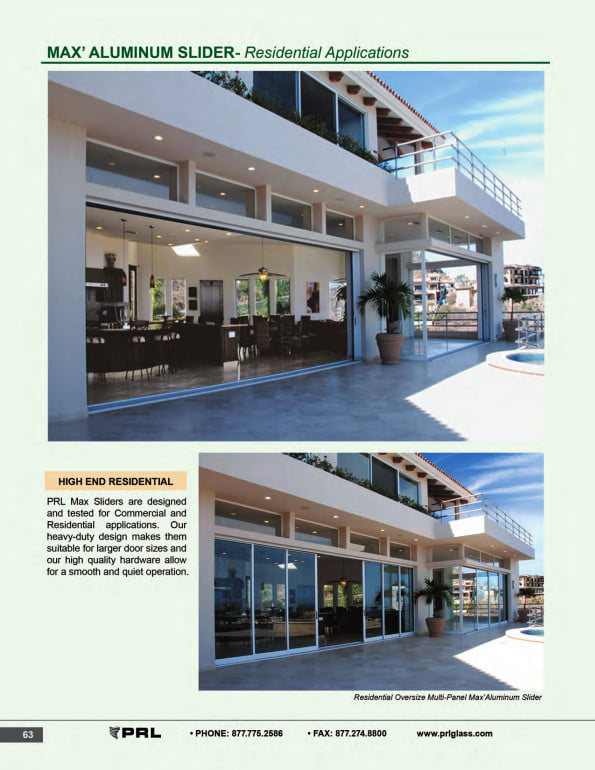

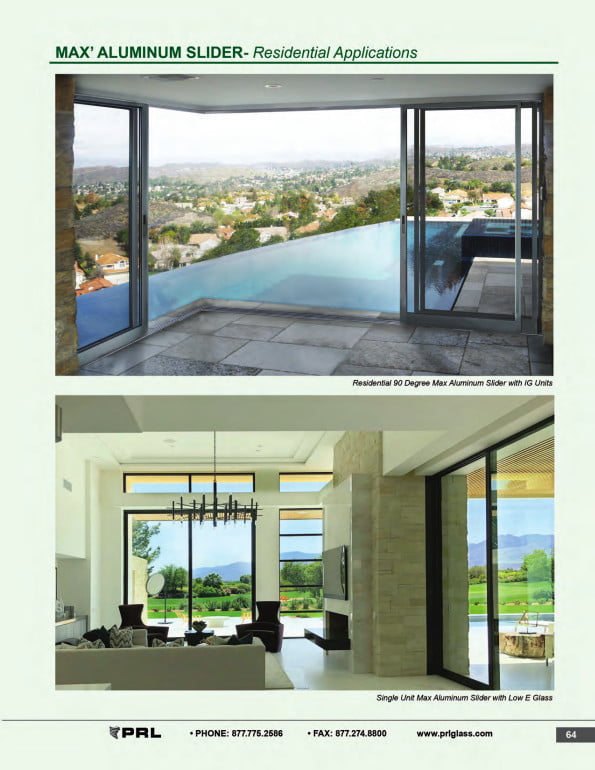

Residential Application Sliding Doors 1
Residential Application Sliding Doors 2
Versatile Glass and Aluminum Sliding Doors 1
Versatile Glass and Aluminum Sliding Doors 2

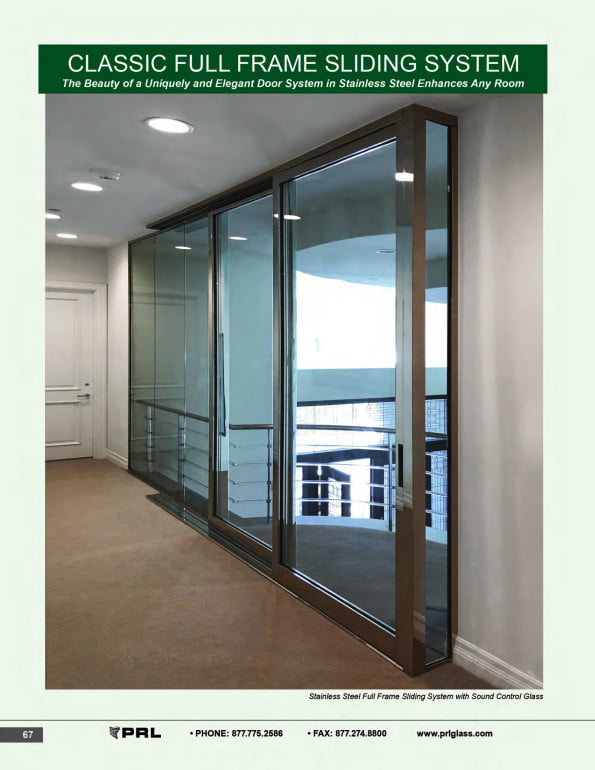

Classic Full Frame Glass and Aluminum Sliding Doors

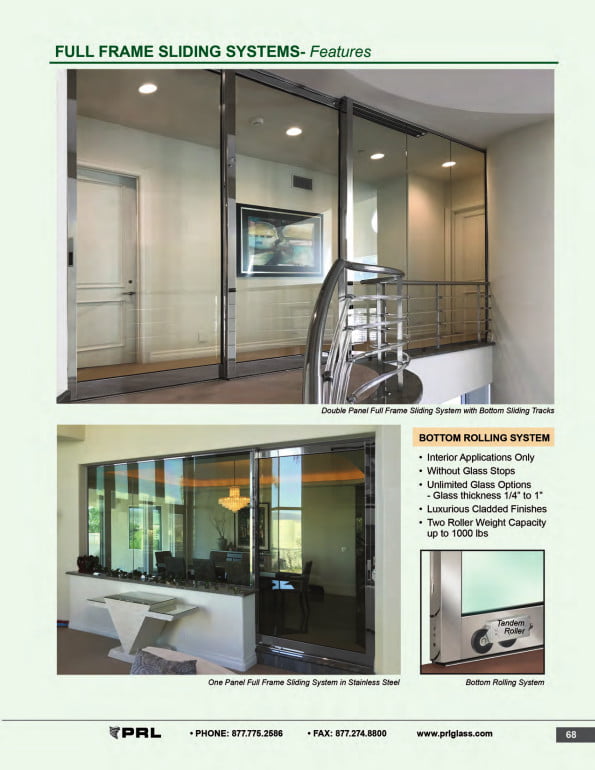

Full Frame Glass and Aluminum Sliding Door Features

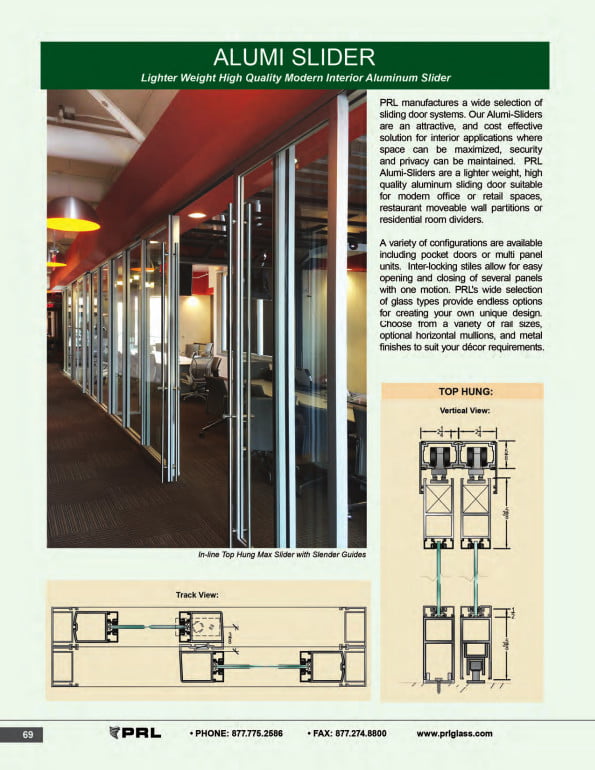

Lighter Weight Aluminum Sliding Doors

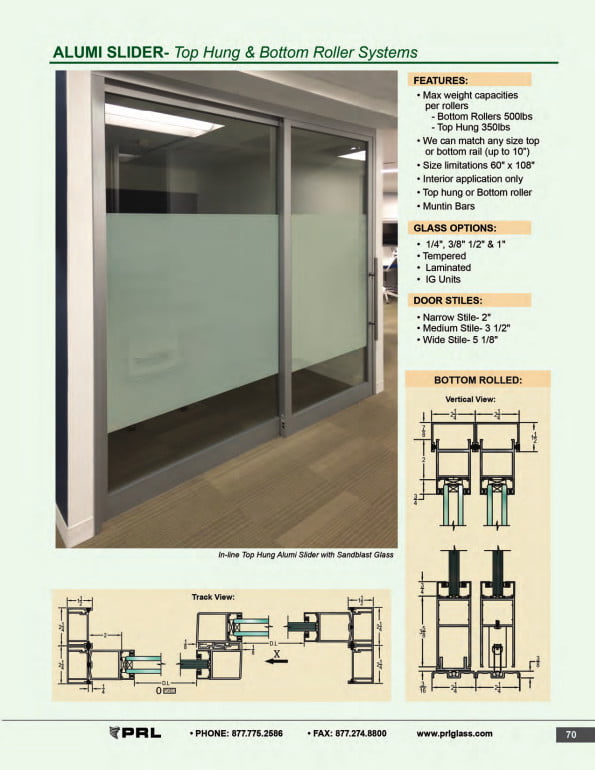

Top Hung and Bottom Rolling Sliding Door Systems

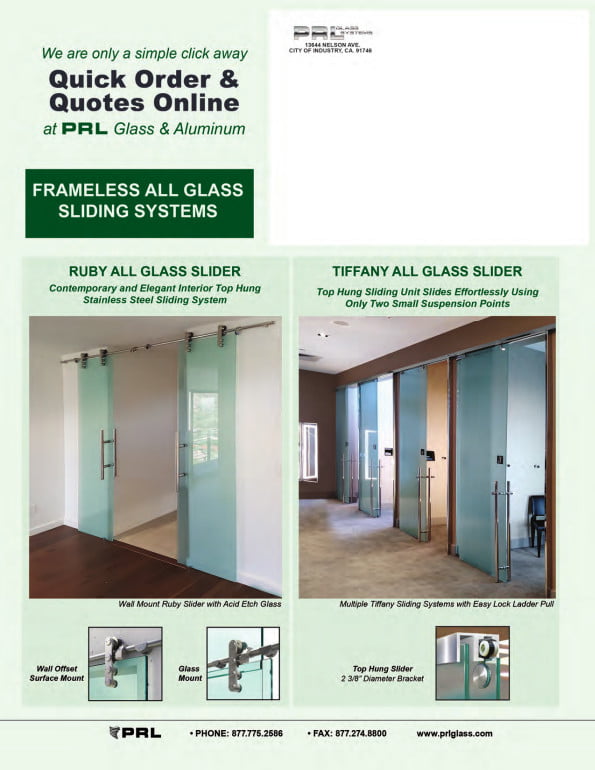

Frameless All Glass Sliding Door Systems
For Complete Glass Door Specifications, Estimates and Orders
Please Feel Free to Contact Us Directly
Toll Free (800) 433-7044
