Bullet Resistant Glass | 1-8 Interlayer Threat Levels

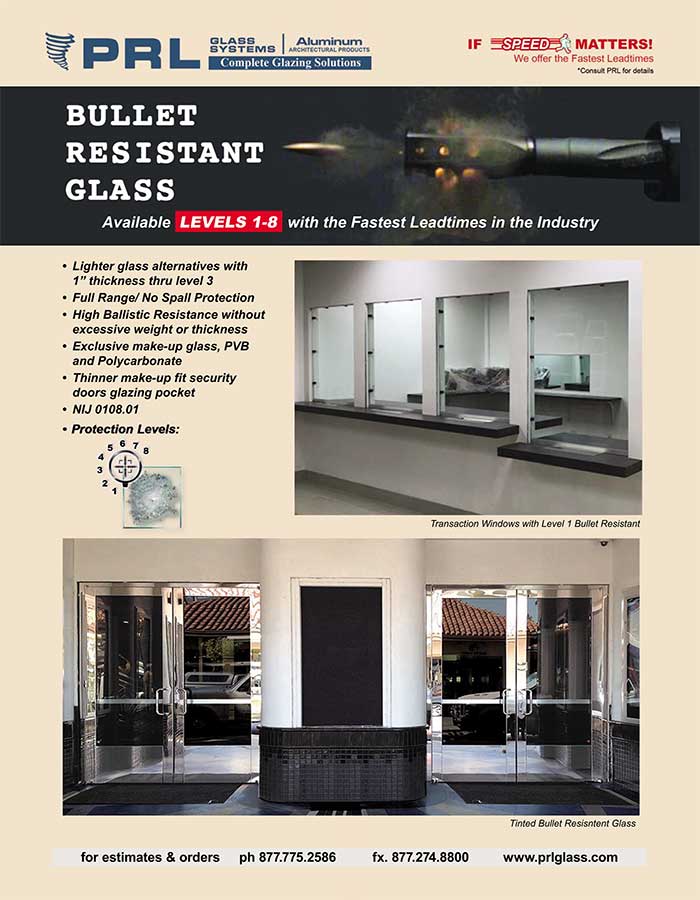

Bullet resistant glass is designed for projects that require an added layer of protection in commercial, institutional, and select residential applications.
Architectural Glass and Metal provides access to laminated bullet resistant glass options with interlayer threat levels from 1 through 8, depending on the required performance, glass make-up, thickness, and project specifications.
These laminated glass systems can be used for applications such as storefronts, transaction windows, ticket booths, security glazing, reception areas, entry systems, bandit barriers, and other areas where ballistic-resistant glazing may be required.
Available in multiple make-ups, panel sizes, thicknesses, and glass types, bullet resistant glass can help support both security performance and architectural design requirements.
Lightest Interlayers & First-Rate Safety
Bullet resistant glass is manufactured using laminated assemblies that may include combinations of glass, PVB interlayers, and polycarbonate materials, depending on the required threat level and performance criteria.
These laminated systems are designed to provide ballistic-resistant protection while managing overall thickness and weight. This can be especially important for framed applications, windows, entrance doors, and glazing pockets where excessive weight or thickness may limit installation options.
Because every project has different requirements, the final glass makeup should be selected based on threat level, frame compatibility, code requirements, project location, and installation conditions.
Bullet resistant glass can be specified to conform to recognized ballistic performance standards such as UL 752 and NIJ 0108.01, depending on the tested configuration and project requirements.
These standards are commonly used to evaluate ballistic-resistant materials based on ammunition type, weapon class, number of shots, test conditions, and penetration resistance.
The product information referenced for this page notes that these laminated assemblies are designed for no-spall ballistic protection, scratch resistance, and high-velocity impact resistance.

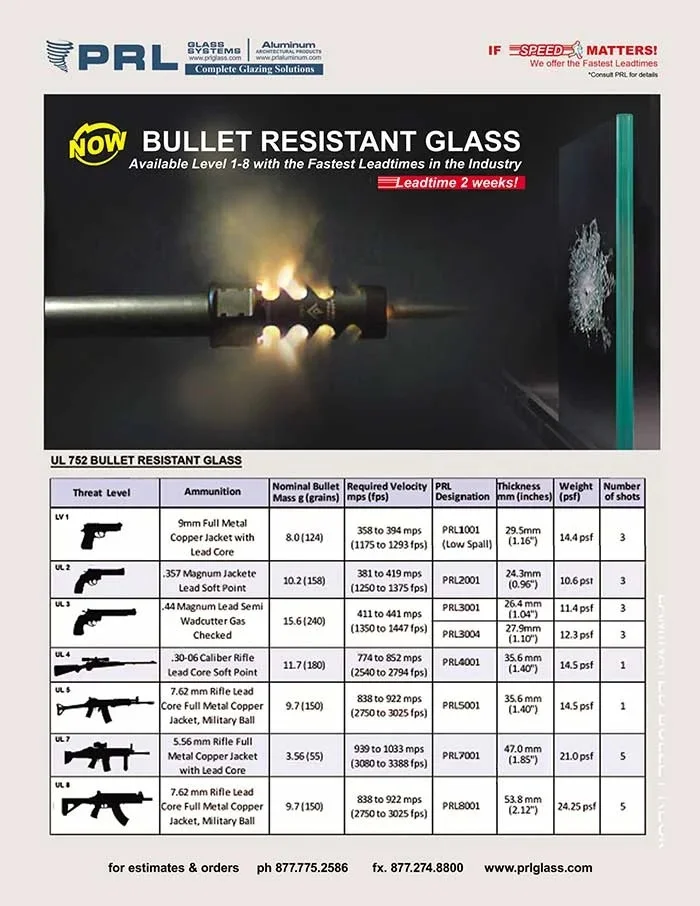

PRL’s 8 Bullet Resistant Glass Threat Levels
|
Threat Level: |
Ammunition Caliber: |
Weapon Tested: |
|
Level 1 |
9 mm. |
Full Metal Copper Jacket with Lead Core |
|
Level 2 |
.357 |
Magnum Jacketed Lead Soft Point |
|
Level 3 |
.44 |
Magnum Lead Semi Wadcutter Gas Checked |
|
Level 4 |
.30-06 |
Rifle Lead Core Soft Point |
|
Level 5 |
7.62 mm. |
Rifle Lead Core Full Metal Copper Jacket, Military Ball |
|
Level 7 |
5.56 mm. |
Rifle Full Metal Copper Jacket with Lead Core |
|
Level 8 |
7.62 mm. |
Rifle Lead Core Full Metal Copper Jacket, Military Ball |
Laminated Make-Ups & Interlayer Thicknesses
Bullet resistant glass is fabricated as a laminated safety glass product, with make-ups selected according to the required threat level and project application.
Available glass types may include:
- Annealed glass
- Heat-strengthened glass
- Tempered glass
Available makeups may include:
- Clear glass
- Tinted glass
- Reflective glass
- Textured glass
- Mirrored glass
Interlayer color options may include:
- Clear
- Gray
- Blue
- Yellow
Overall thickness varies by threat level. In general, higher resistance levels require thicker laminated assemblies. Bullet resistant glass has an optimal thickness of approximately 1” overall , with increased thicknesses used for higher threat levels or specific performance requirements.
Specs: Sizes, Thicknesses, Make-Ups & Colors
Bullet resistant laminated glass can be fabricated in standard and custom panel sizes depending on the selected glass type, threat level, thickness, make-up, and project requirements.
Panel Sizes & Interlayer Thicknesses:
- Max Standard Sheet Sizes: Up to 48″ x 96″
- Custom Panel Sizes: Up to 60″ x 96″
- Interlayer Thicknesses: 1” & up pending threat level
Glass Types, Make-Ups & Interlayer Colors:
- Glass Types: Annealed, heat strengthened & tempered
- Make-Ups: Tinted, reflective, textured & mirrored
- Interlayer Colors: Clear, grays, blues, yellows & more
Common Applications
Bullet resistant glass may be used in a range of commercial, institutional, and residential security applications, including:
- Banks and financial institutions
- Transaction windows
- Ticket booths
- Reception areas
- Security gates
- Storefronts
- Entry systems
- Bandit barriers
- Panic door systems
- Government or administrative facilities
- Retail locations requiring added security
- Residential security glazing applications
The correct product configuration depends on the required level of protection, panel size, framing system, visibility needs, and project specifications.
Quick Product Photo Gallery
Protective glass shields
Free standing glass shield base
Plexiglass shields
Glass fences
Protective plexiglass shields
Glass shields
PRL Glazing Products
Colored Laminated Glass
Solarban® 60 Low-E Glass
Laminated Glass Manufacturing
PRL Low-E Glass
2013 Top Performing Glazing System
Aluminum Doors
Elegante Handrailing System
5 Easy Steps to Shop
316 Stainless Steel Hinge
2012 Complete Handrail Catalog
2012 Top Performing Glazing Solutions
Happy Thanksgiving – 2015
2017 Top 4 Best Sellers
2018 Architectural Glass Catalog
Accordion Sliding Bifold Door System
Accordion Sliding Bifold System
Accordion Sliding Bifold Door System
Accordion Sliding Bifold Door Systems
Accordion Sliding Bifold Door System
Four Krystal Textured Glass Patterns
Adjustable Aluminum Door Stile
All Glass Door Systems
All Glass Entrance Doors and Hardware
All Glass Panic Device Doors
All Glass Railing Systems
All Glass Shower Doors and Hardware
All Glass Sliding Doors
All Glass Sliding Doors
All Glass Swing Door Fittings
All-In-One Patch Fitting and Closer
Aluminum Glass Door Manufacturer
Aluminum Glass and Gates
Aluminum Bifold Accordion Doors
Aluminum Curtail Wall Systems
Aluminum Doors
Aluminum Entrance Doors and Storefronts
Aluminum Extrusions
Aluminum Gates and Doors
Aluminum Glass Walls
Aluminum MAX' – Nail Fin Technology
Aluminum Modular Railing
Aluminum Multi Panel Sliding Door
MAX'Sliders – 1 Inch Narrow Stile
Aluminum Sliding Door System
Aluminum Storefronts
Aluminum Storefront Products
Alumi-Slider
Aluminum Sliders
architectura-glass-and-metal
Architectural Break Metal Products
Architectural Glass
Architectural Glass and Metal Catalog
Architectural Glass and Metal Products
Architectural Glass and Metal Top Performers
Architectural Glass Photos
Architectural Metal
Architectural Reflective Glass
Ari Compound Laminated Glass Doors
Automated Extrusion Press
Automatic Swing Door Operator
Ballistic Resistant Glazing Laminate
Bottom Rolling MAX'Sliders
Bottom Rolling Sliding Doors
Bullet Resistant Glass
Buy Glass Online
California Glass and Metal Fabricator
California Handrail Manufacturer
Clad Doors
Clad Full Framed Entrance Door Systems
Classic Full Framed Sliding Doors
Clearvision Stacking Movable All Glass Wall System
Colored Spandrel Glass
Commercial Aluminum Entrance Doors
Complete Aluminum Storefront Systems
Complete Glazing Systems
Complete Handrail Systems
Complete Shower Door Units
Custom Aluminum Entrance Doors
Custom Aluminum Entrance Doors – Storefront
Custom Aluminum Extruder
Custom Aluminum Extrusions
Custom Architectural Break Metal
Custom Fabricated Mirrors
Custom Fences
Custom Flex Posts
Custom Glass
Custom Glass and Metal Security Gates
Custom Glass Gates
Custom Glass Metal Railing
Custom Glass Specialty Experts
Custom Glass Table Tops
Custom Glazing Installation Images
Custom Handrail and Guardrail Posts
Custom Heavy Tempered Glass
Custom Shower Units
Dead Bolt Locking Door Pulls
Decorative Glass Beautifies Interiors
Decorative Laminated Glass
Door Pull Handles
Dryset Sidelite Door Rails
Dryset Sidelite Headers
Easy Install Handrail System
Easy Locking Ladder Pulls
Easy Locking Ladder Pulls
Elegant Full Framed Clad Doors
Elegant Glass Fences and Gates
Entrance Systems
Entrance Door Panic Device Catalog
Entrance Door Systems
EURO Patch Fittings
Exterior Glass Door Applications
Fabricated Aluminum Doors
Fabricated Mirrors
Fast All Glass Door Installation
Fire Rated Glass
Flex Post Handrail/Guardrail System
Flex Post System
Floating Header Panic Device
Frameless Glass Bypas Doors
Frameless Shower Doors and Glass
Frameless Shower Enclosures
Frameless Shower Units
Free Admission – Glass Expo West 2015
full-framed-cladded-doors
Guardrail/Handrail Components – Top Caps
Glass Build America – 2018
Glass and Aluminum Discount
Glass and Metal Concepts
Glass and Metal Custom Railing
Glass Applications
Glassbuild America – 2018
Glassbuild America – 2016
Glassbuild America – 2018
Glass Door Exit Device
Glass Expo West – 2017
Glass Fences and Gates
Glass Office Cubicles
Glass Post Railing System
Glass Sliders
Glass Stand Off Railing Systems
Glazing Applications
Glazing Products
Glazing Sealants
Glazing Solutions
Gluechip Shower Glass – Lilly
Green Tinted Glass
Guardrail Components
Guardrail System
Handrail PDF From PRL
Handrail Top Cap
Harrah's Casino Shower Door Project
Heavy Duty Glass Door Hinge
Heavy Tempered Glass
Heavy Tempered Glass Specialist
High Quality Aluminum Sliding Door
Low-E Glass and IG Units
Infinity Glass Guardrail System
Infinity Guardrail System
International Glazing Solutions
Keralite® Fire Rated Glass
PRL Ladder Pulls
Laminated Colored Glass
Laminated Glass
Laminated Glass
Laminated Glass Line
Laminated Glass Manufacturing
Laminated Glass PossiblitiesZ
Laminated Glass Products
Laminated SentryGlas®
Laminated Tempered Security Glass
La Puente Glass Manufacturers Award
LED Glass Railings
Architectural Glass Manufacturer
Los Angeles Door Hardware Manufacturer
Low-E Architectural Glass
Low-E Glass
Low Emissivity Glass
Low-Iron Mirros
MAX' Slider Door System
MAX'Slider Hurricate Impact Resistant
MAX'Sliders
MAX' Sliding Doors
MAX' Sliding Doors
MBE Certification
Mighty Mini Rapid Dry-Set
Mirrors
Narrow Door Stiles
New Insulated Glass Line
New PRL 2015 Catalog
New Raipd Low Profile Handrail Base System
New Shower Door Enclosure Catalog
New White Translucent Structural SentryGlas®
PRL has NFRC Certification
NFRC Certified Aluminum Sliding Glass Doors
Online Frameless Shower Door Ordering
Online Order Entry Contest
Online Order Entry Contest
Online Ordering and Quoting
PRL – Online Specs
Order and Quote PRL Storefront Stock Lengths Online
Order Glass Online
Order Shower Door Sliders Online
Oversized Glass Tempering Oven
4th Oversized Tempering Furnace
Oversized Tempering Furnace
Painted Spandrel Glass
Panic Device – Raising The Bar
Panic Devices and Hardware Catalog
Panic Device Tested Over 1 Million Cycles
PRL Panic Hardware
PG51A W1 Glass Fabrication
PG51A W2 Glass Fabrication
PRL PL-2000 HD Floor Closer
Insultaed Glass
Price Increase
Privacy Glass
PRL 2012 Glass Handrail Catalog
PRL 2018 Architectural Glass Catalog
PRL Account Info
PRL All Glass Entrance Systems
PRL Aluminum Bifold Accordion Doors
PRL Company Directory
PRL Company Directory – 2017
PRL Deadbolt Handles
PRL Elegante Handrail System
PRL Glassbuild – 2014
PRL Glass – My Account
PRL Glass Price Increase
PRL Glass Systems, Inc.
PRL Glazing Products Galleries
PRL Handrail Base for Glass
PRL Infinity Guardrail System
PRL Laminated Glass
PRL Glass and Aluminum
PRL New Will Call Hours
PRL Panic Device
PRL Photo Contest
PRL Shower Door Hardware
PRL Spandrel Glass
PRL Textured Glass
PRL Tinted Uncoated Glass Products
PRL Project Photos
Push/Pull EZ Access Egress Control Devices
Push/Pull EZ Access Egress Control Devices
Quote and Order PRL Products Online
PRL Railing System
Rapid Design Base Shoe
Rapid Dry-Set Base Shoe
Rapid Dryset Door Rails
Raipd Dryset Sidelite Rail Manufacturer
Raipid Handrail Base
Raipd Handrail Systems Test Report
Reflective Glass
Robot Polisher System
Round Bar Handle Panic Device
Round Tube Mitered Corner Panic Device
Ruby All Glass Sliders
Ruby All Glass Sliding System
Samson Glass Handrail Clamp System
Samson Heavy Duty Hinge
Sampson Hydraulic Door Patch Closer
Sandblasted Glass
Sandblast Glass Creations
Sealants Cue Card
Security Glass Bullet Resistant Laminates Ballistic Glass
Selling Glass and Metal
Shower Door Coatings
Shower Door Hardware
Shower Door Slider
Shower Door Sliders
Shower Doors Slider
Shower Glass Door Hardware
prl-shower-glass-types
Shower Sliders
Sidelites Dryset Glass Rails
Silicone Products
PRL's MAX'Sliders – Sliding Doors
Sliding Glass Doors – Nail Fin Frame
Sliding Glass Doors
Sliding Pocket Door
Small Handrail Base
Sunguard SuperNeutral Series SNX 62/27
Solarban® 60 Low-E Glass
Solarban® 60 Low-E Glass
Sound Control Laminated Glass
PRL’s Spandrel Color Glass
PRL Spandrel Glass
Spandrel Glass in Shower Enclosures
Specialty Glass Doors
Square Deadbolt Locking Door Pull
Square Panic Bar Device
Square Tube Panic Device
Sainless Steel Railing Systems
Starphire Glass
Starphire Glass
Storefront and Glass Door Specifications
PRL Storefront Systems
Sunguard SNR 43 Superneutral&#reg; Series
Sunguard SNX 51/23
Super Neutral 54 Crystal Gray Glass
Super Neutran 68HT for Embedded Laminated Glass
Tall Door Panic Device
Tempered Glass Fabricator
PRL Textured Glass
Tiffany All Glass Interior Sliding Door System
Tiffany Glass Sliding Door System
Tiffany Interior Glass Sliding Door System
Tiffany Shower Door Slider
Top Hung Aluminum Sliding Door
Top Hung Sliding Door
Top Hung Sliding Doors
Transparent Mirror
Tubular Panic Device
Tubular Panic Device and Hardware
TVS All Glass Entrance Systems
Ultra Narrow Stile I Line Doors
PRL Urgency Program
Winners of our Photo Contest

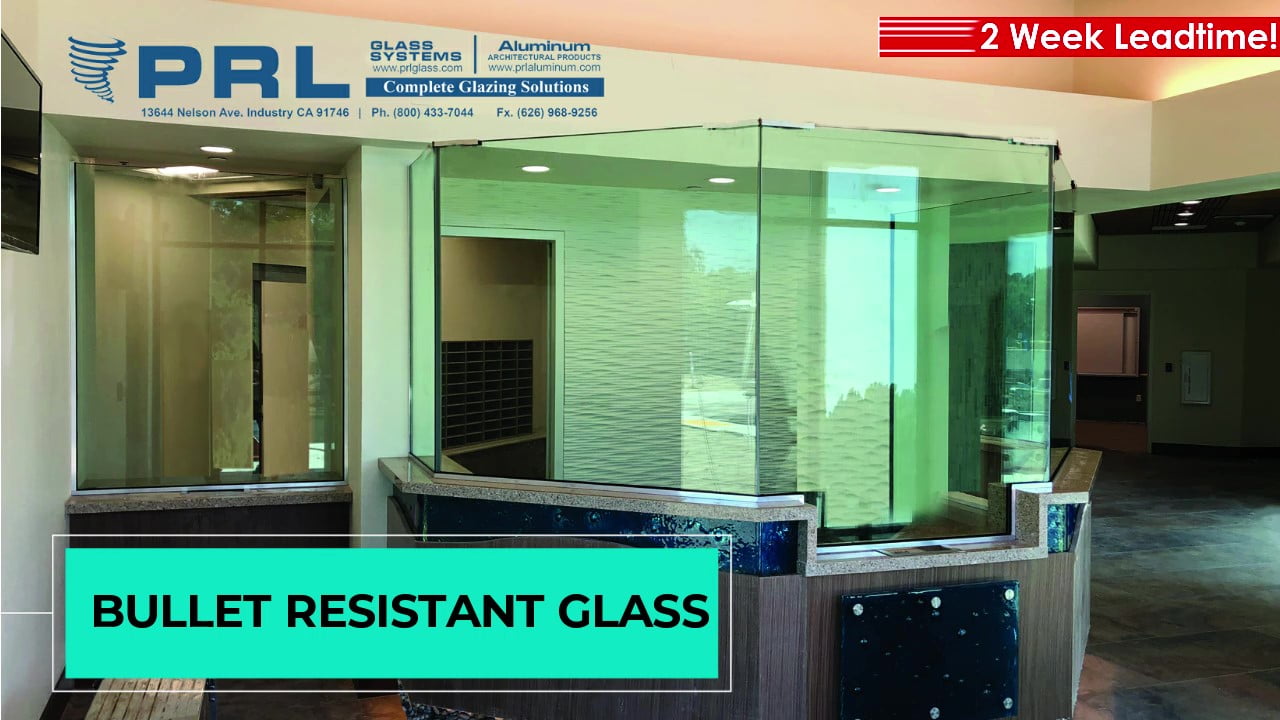

Bullet resistant laminated glass can help support safer architectural environments without completely compromising transparency or design flexibility.
With multiple threat levels, glass make-ups, interlayer colors, panel sizes, and thickness options available, these systems can be specified for projects where ballistic-resistant glazing is part of the security plan.
For Complete Tempered Glass Specifications, Estimates and Orders
Please Feel Free to Contact Us Directly
Toll Free (800) 433-7044
